Stabilizer, rear for BMW 3 Series E21 320 (1979)

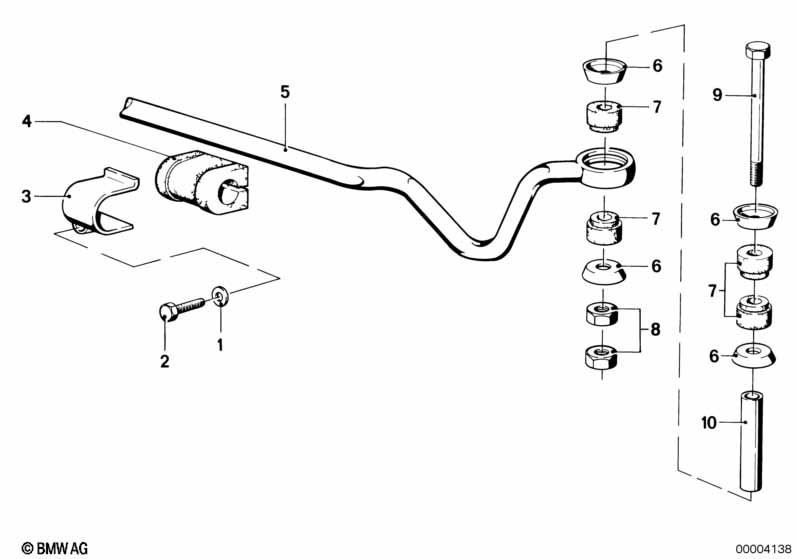

This Stabilizer, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Bracket rear | 2 | 33551114510 | $5.23 | Shop at ECS Tuning | |||||
| 04 | Stabilizer rubber mounting | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 05 | Stabilizer, rear | D=16MM | 1 | 33551111156 | $106.86 | ENDED | Shop at ECS Tuning | |||
| 06 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 07 | Rubber Ring | 8 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M8-8-ZNS3 | 2 | 12/1983 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 08 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X140 | 2 | 07119912588 | $5.19 | ENDED | Shop at ECS Tuning | |||
| 10 | Spacer tube | 2 | 33551103721 | $2.70 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
