Stabilizer for BMW 3 Series E21 320i (1977)

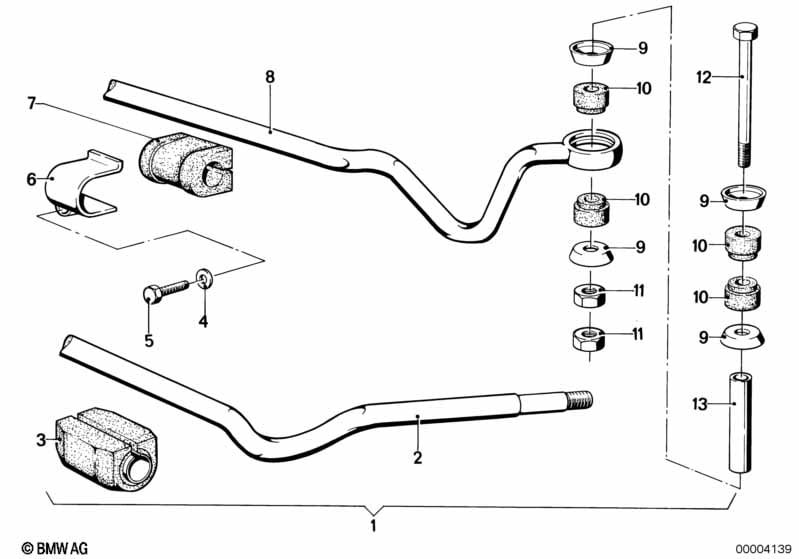

This Stabilizer technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Bracket rear | 2 | 33551114510 | $5.23 | Shop at ECS Tuning | |||||
| 07 | Stabilizer rubber mounting | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 08 | Stabilizer, rear | D=16MM | 1 | 33551111156 | $106.86 | ENDED | Shop at ECS Tuning | |||
| 09 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 10 | Rubber Ring | 1 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M8-8-ZNS3 | 2 | 12/1982 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 11 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X140 | 2 | 07119912588 | $5.19 | ENDED | Shop at ECS Tuning | |||
| 13 | Spacer tube | 2 | 33551103721 | $2.70 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Stabilizer?
- This technical diagram illustrates the Stabilizer within the Rear Axle group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Washer (Part #07119907030).
- Which models use the hardware listed in this Stabilizer?
- The hardware and components featured in the Stabilizer are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Washer (07119907030) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer assembly?
- Each item in the Stabilizer corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Washer by locating its position on the schematic, which then links to the official BMW part number 07119907030 for the Rear Axle section.
