Stabilizer, rear for BMW 8 Series E31 840i (1996)

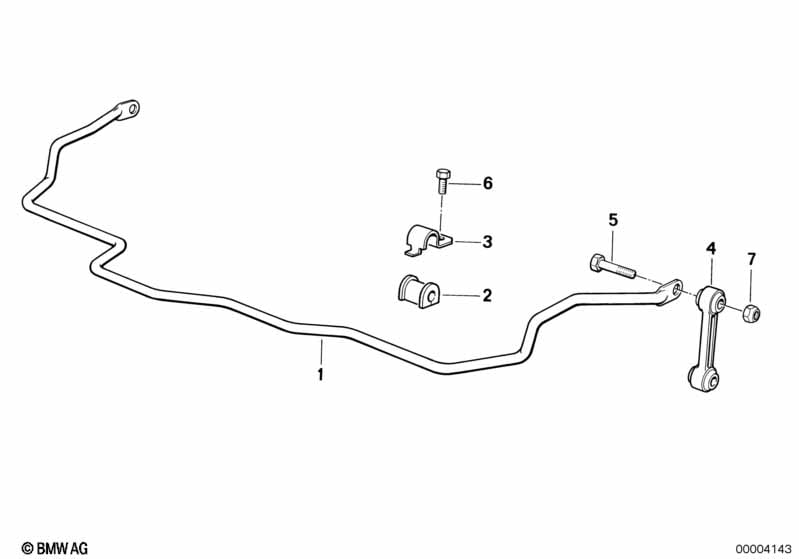

This Stabilizer, rear technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear | D=15,5MM | 1 | 09/1992 | 33551090374 | $155.27 | Shop at ECS Tuning | |||
| For vehicles with Active rear axle kinematics |
=Yes |
|||||||||
| 01 | Stabilizer, rear | D=15,5MM | 1 | 09/1992 | 33551090374 | $155.27 | Shop at ECS Tuning | |||
| 02 | Stabilizer rubber mounting | D=15,5MM | 2 | 04/1992 | 33551090376 | $5.70 | Shop at ECS Tuning | |||
| For vehicles with Active rear axle kinematics |
=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=15,5MM | 2 | 33551090376 | $5.70 | Shop at ECS Tuning | ||||
| 03 | Stabilizer support | 2 | 33551129195 | $1.52 | Shop at ECS Tuning | |||||
| 04 | Stabilizer link | 2 | 33551136426 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M10X50 | 2 | 07119913859 | $0.89 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M10 | 4 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
