Levell.device/regulating valve/att.parts for BMW 5 Series E12 525 (1981)

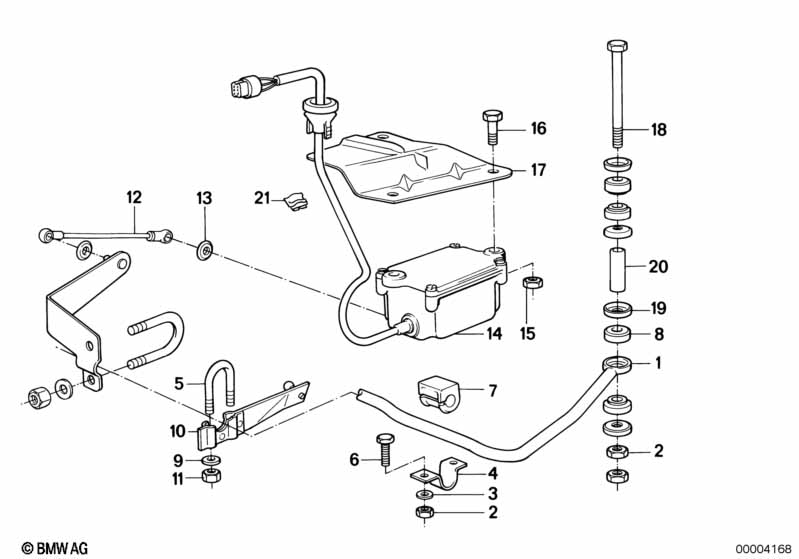

This Levell.device/regulating valve/att.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear | D=18MM | 1 | 09/1979 | 33551123945 | $101.84 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex nut | M8-8-ZNS3 | 6 | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 02 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 03 | Washer | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Stabilizer support | 2 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 05 | Bow | 1 | 37121123877 | $4.42 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Stabilizer rubber mounting | D=18MM | 2 | 31352654111 | $8.86 | Shop at ECS Tuning | ||||
| 08 | Rubber Ring | 8 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 09 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Lever | 1 | 37121124163 | $5.47 | ENDED | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M6-10 ZN | 2 | 07/1981 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 11 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Rod | 1 | 37121124385 | $21.45 | ENDED | Shop at ECS Tuning | ||||
| 13 | Plastic bush | 2 | 23417650149 | $1.20 | Shop at ECS Tuning | |||||
| 13 | Rod | 1 | 37121131595 | ENDED | Shop at ECS Tuning | |||||
| 14 | Switch | 1 | 37141155101 | $801.14 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rod | 1 | 37121124385 | $21.45 | ENDED | Shop at ECS Tuning | ||||
| 14 | Switch | 1 | 37141155101 | $801.14 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rod | 1 | 37121131595 | ENDED | Shop at ECS Tuning | |||||
| 15 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 17 | Holder | 1 | 37121121170 | ENDED | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 19 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 20 | Spacer sleeve | 2 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 21 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
