Levelling device/tubing/attaching parts for BMW 7 Series E23 732i (1982)

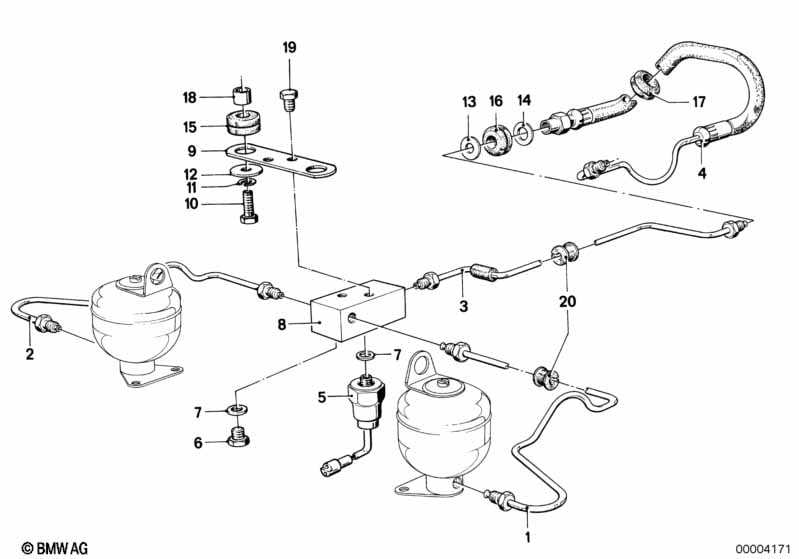

This Levelling device/tubing/attaching parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10 | 1 | 34326772472 | $39.15 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-1175MM | 1 | 34326755612 | $8.65 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M10-1175MM | 1 | 34326755612 | $8.65 | Shop at ECS Tuning | ||||
| 04 | Hose line | ATE | 1 | 37131119852 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose line | F+S | 1 | 37131127751 | $107.89 | ENDED | Shop at ECS Tuning | |||
| 05 | Pressure switch | 30BAR | 1 | 61311368271 | $176.36 | ENDED | Shop at ECS Tuning | |||
| 06 | Screw plug | AM10X1 | 1 | 07119919217 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 08 | T-Connector | 1 | 37131119861 | $110.21 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 08 | Valve | 1 | 09/1981 | 37131125485 | $287.93 | ENDED | Shop at ECS Tuning | |||
| 09 | Holder | 1 | 09/1981 | 37131125924 | $3.51 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex bolt | M6X28-8.8-ZNS | 2 | 09/1981 | 07119913021 | $2.30 | Shop at ECS Tuning | |||
| 11 | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Washer | 6,4X25X1,5 | 2 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Washer | 10X25X1,5-ZNS3 | 1 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 14 | Washer | 14X25X2-ZNS3 | 1 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 15 | Rubber grommet | 2 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 16 | Rubber grommet | 1 | 34306865954 | Shop at ECS Tuning | ||||||
| 17 | Rubber grommet | 1 | 37131127822 | $1.24 | ENDED | Shop at ECS Tuning | ||||
| 18 | Spacer bush | 12MM | 2 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X8 | 2 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 20 | Bushing | 5 | 37131113373 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
