Levelling device/tubing rear for BMW 5 Series E28 518i (1987)

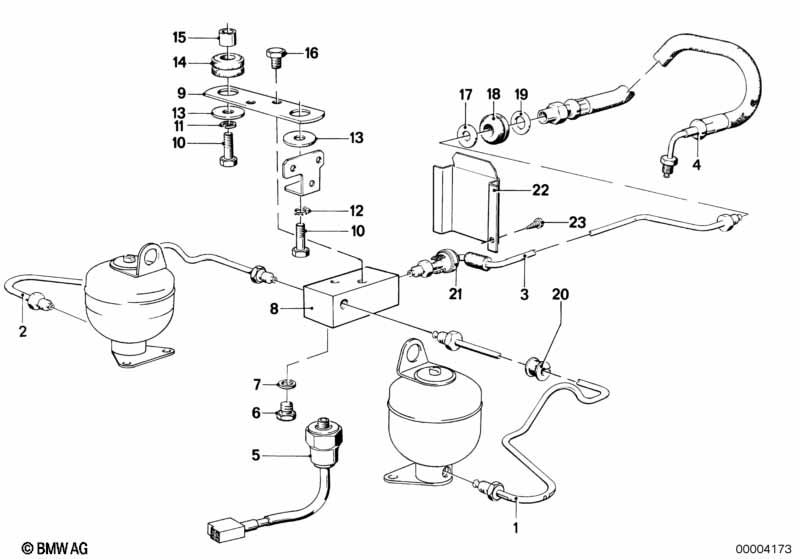

This Levelling device/tubing rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10 | 1 | 34326772563 | $53.48 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-963MM | 1 | 34326755601 | $10.03 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M10-780MM | 1 | 09/1984 | 34326755592 | $8.65 | Shop at ECS Tuning | |||
| 04 | Hose | 1 | 37131121008 | ENDED | Shop at ECS Tuning | |||||
| 05 | Pressure switch | 30BAR | 1 | 61311368271 | $176.36 | ENDED | Shop at ECS Tuning | |||
| 05 | Pressure switch | 140BAR | 1 | 04/1985 | 37141155652 | $197.53 | ENDED | Shop at ECS Tuning | ||
| 06 | Screw plug | AM10X1 | 1 | 07119919217 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 08 | T-Connector | 1 | 37131119861 | $110.21 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 37131119862 | $3.35 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Tooth washer | A6,4 | 1 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Washer | 6,4X25X1,5 | 2 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 14 | Rubber grommet | 2 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 15 | Spacer bush | 12MM | 1 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M6X8 | 2 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 17 | Washer | 10X25X1,5-ZNS3 | 1 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 18 | Rubber grommet | 1 | 34306865954 | Shop at ECS Tuning | ||||||
| 19 | Washer | 14X25X2-ZNS3 | 1 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 22 | Covering plate | 1 | 37131121089 | $2.68 | ENDED | Shop at ECS Tuning | ||||
| 23 | Sheet metal screw | 3,5X9,5 | 4 | 07119904455 | $2.45 | Shop at ECS Tuning |
