Levell.device/regulating valve/att.parts for BMW 5 Series E28 518i (1987)

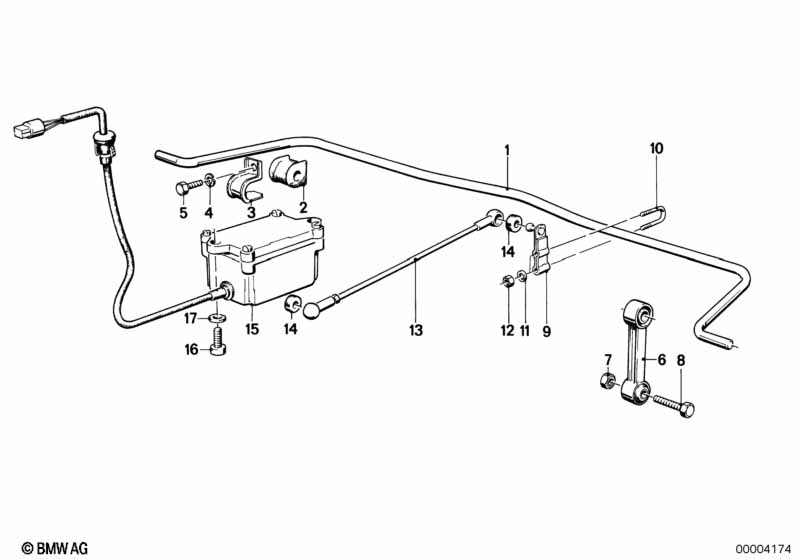

This Levell.device/regulating valve/att.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear | D=12MM | 1 | 09/1984 | 33551128384 | ENDED | Shop at ECS Tuning | |||
| 02 | Stabilizer rubber mounting | D=12MM | 2 | 09/1984 | 33551129677 | $10.36 | Shop at ECS Tuning | |||
| 04 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Stabilizer link | 2 | 33551124375 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex bolt | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M8 | 2 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Lever | 1 | 37121125025 | ENDED | Shop at ECS Tuning | |||||
| 11 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M6-10 ZN | 2 | 12/1987 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 12 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Thrust rod, cranked | 139MM | 1 | 02/1985 | 37121130613 | $55.91 | ENDED | Shop at ECS Tuning | ||
| 14 | Plastic bush | 2 | 23417650149 | $1.20 | Shop at ECS Tuning | |||||
| 15 | Switch | 1 | 02/1985 | 37141178796 | $828.25 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 16 | Fillister-head screw | M8X20 | 2 | 07119919759 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
