Rear spring strut, levelling device for BMW 7 Series E23 733i (1982)

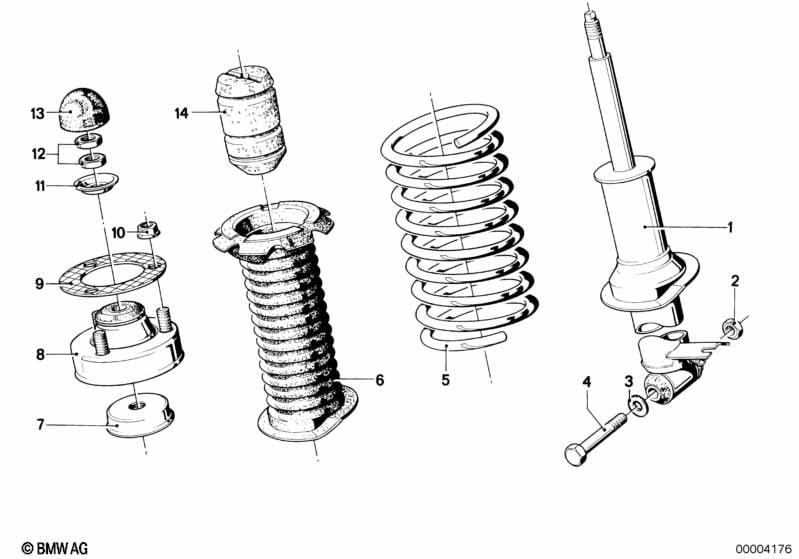

This Rear spring strut, levelling device technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber, rear left | 1 | 09/1981 | 09/1982 | 37121125395 | $378.06 | Shop at ECS Tuning | |||
| 01 | Shock absorber, rear right | 1 | 09/1981 | 09/1982 | 37121125396 | $335.92 | Shop at ECS Tuning | |||
| 03 | Washer | 2 | 09/1981 | 09/1982 | 33521125260 | $1.65 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M14X1,5X85 | 2 | 09/1981 | 09/1982 | 07119914829 | $5.82 | Shop at ECS Tuning | ||
| 06 | Cup | 2 | 09/1982 | 33521109689 | $20.13 | Shop at ECS Tuning | ||||
| 07 | Support | 2 | 09/1982 | 37121114729 | $3.07 | Shop at ECS Tuning | ||||
| 09 | Gasket | 2 | 09/1982 | 33521117869 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Self-locking collar nut | M8-8-ZNS3 | 6 | 09/1982 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 10 | Self-locking collar nut | M8-10 ZNS3 | 6 | 09/1982 | 07119905374 | Shop at ECS Tuning | ||||
| 11 | Plate | 2 | 09/1982 | 37121119469 | $1.82 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 09/1982 | 32216769539 | $0.83 | Shop at ECS Tuning | |||
| 13 | Protection cap | 2 | 09/1982 | 33521119067 | $2.10 | Shop at ECS Tuning | ||||
| 14 | Absorber | 2 | 04/1980 | 09/1982 | 37121124593 | $16.52 | Shop at ECS Tuning |
