Rear levelling device stabilizer bar for BMW 7 Series E23 735i (1989)

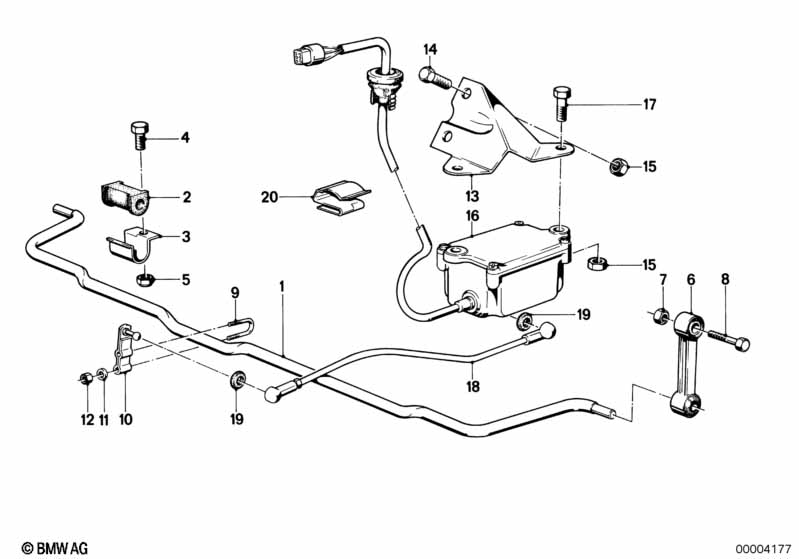

This Rear levelling device stabilizer bar technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear | D=15MM | 1 | 01/1983 | 33551127580 | $124.21 | ENDED | Shop at ECS Tuning | ||
| 02 | Rubber Mounting | D=15MM | 2 | 01/1983 | 31352454010 | $5.60 | Shop at ECS Tuning | |||
| 03 | Stabilizer support | 2 | 01/1983 | 33311119289 | $4.32 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10X18-8.8-ZNS3 | 2 | 01/1983 | 07119904033 | $0.65 | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M10 | 2 | 01/1983 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 06 | Stabilizer link | 2 | 01/1983 | 33551124375 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M8X45-8.8-ZNS3 | 2 | 01/1983 | 07119902955 | $0.62 | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M8 | 2 | 01/1983 | 07129922716 | $0.36 | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 01/1983 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M8X40-ZNNIV SI | 2 | 01/1983 | 07119905549 | $1.05 | Shop at ECS Tuning | |||
| 09 | Bow | 1 | 01/1983 | 37121123877 | $4.42 | Shop at ECS Tuning | ||||
| 10 | Lever | 1 | 01/1983 | 37101124832 | $7.80 | Shop at ECS Tuning | ||||
| 11 | Washer | A6,4-200HV-ZNS3 | 2 | 01/1983 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 12 | Self-locking hex nut | M6 ZNNIV SI | 2 | 01/1983 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 13 | Holder | 1 | 01/1983 | 37121129036 | $14.51 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex bolt | M8X16-10.9-PHR | 2 | 01/1983 | 07119913612 | $0.62 | Shop at ECS Tuning | |||
| 15 | Self-locking hex nut | M8-8-ZNNI SI | 4 | 01/1983 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 17 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 01/1983 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 17 | Hex bolt | M8X25 | 2 | 01/1983 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 19 | Plastic bush | 2 | 01/1983 | 23417650149 | $1.20 | Shop at ECS Tuning | ||||
| 20 | Clamp | 1 | 01/1983 | 07147202015 | Shop at ECS Tuning | |||||
