Single components for rear spring strut for BMW 3 Series E30 320i (1990)

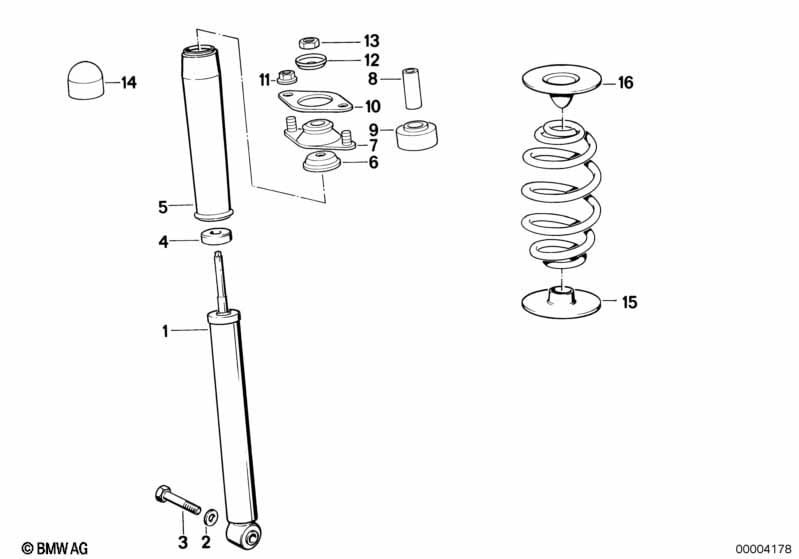

This Single components for rear spring strut technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Shock absorber, rear | BOGE GAS | 2 | 33521135888 | $187.59 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Sport suspension and M technic |
L807A=Yes =Yes =Yes |
|||||||||
| 01 | Shock absorber, rear | BOGE GAS | 2 | 33521135888 | $187.59 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Washer | A13/HV-ZNS | 2 | 05/1991 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M12X1,5X65 | 2 | 07119914647 | $1.54 | ENDED | Shop at ECS Tuning | |||
| 04 | Stop buffer | 2 | 33521125078 | $2.77 | Shop at ECS Tuning | |||||
| 05 | Protection tube | 2 | 33521129263 | $17.89 | Shop at ECS Tuning | |||||
| 06 | Support | 54 | 2 | 33521091427 | $3.62 | Shop at ECS Tuning | ||||
| 07 | Guide support | 2 | 33521128819 | $29.71 | Shop at ECS Tuning | |||||
| 10 | Washer-gasket | 2 | 33526772864 | $0.48 | Shop at ECS Tuning | |||||
| 11 | Self-locking collar nut | M8-8-ZNS3 | 4 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 12 | Support | 44MM | 2 | 33521117677 | $1.72 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 14 | Protection cap | 2 | 33521119067 | $2.10 | Shop at ECS Tuning | |||||
| 15 | Spring pad | 7,5MM | 2 | 33531136386 | $7.62 | Shop at ECS Tuning | ||||
