Levell.device/regulating valve/att.parts for BMW 5 Series E34 518i (1996)

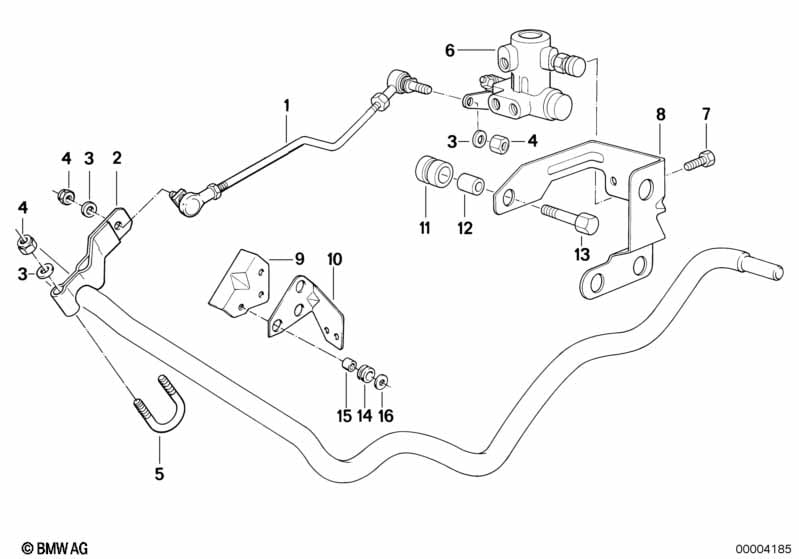

This Levell.device/regulating valve/att.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rod | 1 | 37121134166 | $39.90 | Shop at ECS Tuning | |||||
| 02 | Lever | 1 | 37121134165 | $8.85 | Shop at ECS Tuning | |||||
| 03 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Bow | 1 | 37121123877 | $4.42 | Shop at ECS Tuning | |||||
| 06 | Regulating valve | 1 | 37121138407 | $329.73 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Regulating valve bracket | 1 | 37121134167 | $10.16 | Shop at ECS Tuning | |||||
| 10 | Regulating valve bracket | 1 | 37121134169 | $5.19 | Shop at ECS Tuning | |||||
| 14 | Rubber grommet | 3 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 15 | Spacer bush | 12MM | 3 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 16 | Washer | 6,4X25X1,5 | 3 | 07146977329 | $0.64 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
