Levelling device/pressure accumulator for BMW 3 Series E30 320i

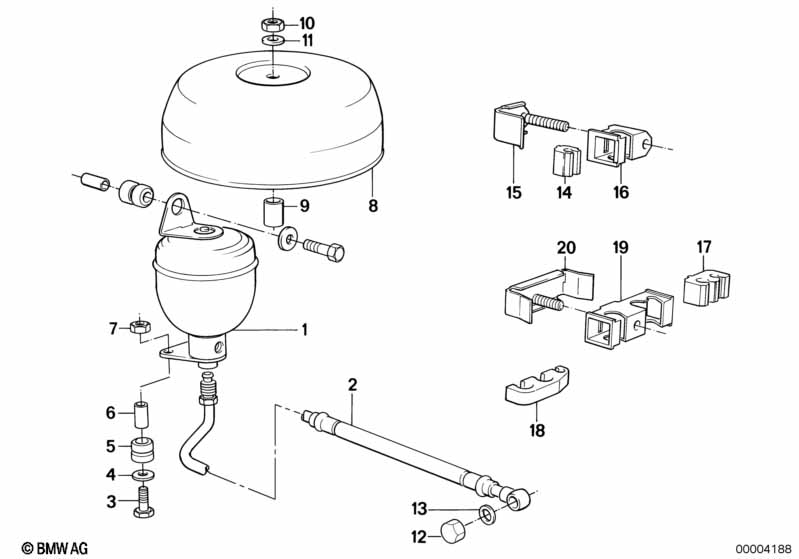

This Levelling device/pressure accumulator technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure accumulator | 2 | 37211132043 | $192.97 | Shop at ECS Tuning | |||||
| 02 | Pressure hose assy left | 1 | 37131132873 | Shop at ECS Tuning | ||||||
| 02 | Pressure hose assy right | 1 | 37131132874 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X25 | 6 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Washer | 6,4X25X1,5 | 6 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Rubber grommet | 6 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 06 | Spacer bush | 12MM | 6 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M6-10 ZN | 6 | 05/1993 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 07 | Self-locking hex nut | M6 ZNNIV SI | 6 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 37121133415 | ENDED | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | 1 | 11761285136 | $1.03 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4X24X2-ZNS3 | 1 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Cap nut | M12X1,5 | 2 | 07119924242 | $2.33 | ENDED | Shop at ECS Tuning | |||
| 13 | Gasket ring | A12X15-CU | 2 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Rubber buffer | 3 | 16121178832 | $2.08 | Shop at ECS Tuning | |||||
| 15 | Bow | 3 | 37131133421 | $3.33 | Shop at ECS Tuning | |||||
| 16 | Holder | 3 | 37131133420 | $0.87 | Shop at ECS Tuning | |||||
| 17 | Rubber buffer | 2 | 37131133417 | $0.78 | Shop at ECS Tuning | |||||
| 18 | Spacer holder | 1 | 16121176766 | $1.03 | Shop at ECS Tuning | |||||
| 19 | Holder | 2 | 37131133416 | ENDED | Shop at ECS Tuning | |||||
| 20 | Bow | 1 | 37131133418 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
