Levelling device/tubing/attaching parts for BMW 3 Series E30 320i (1991)

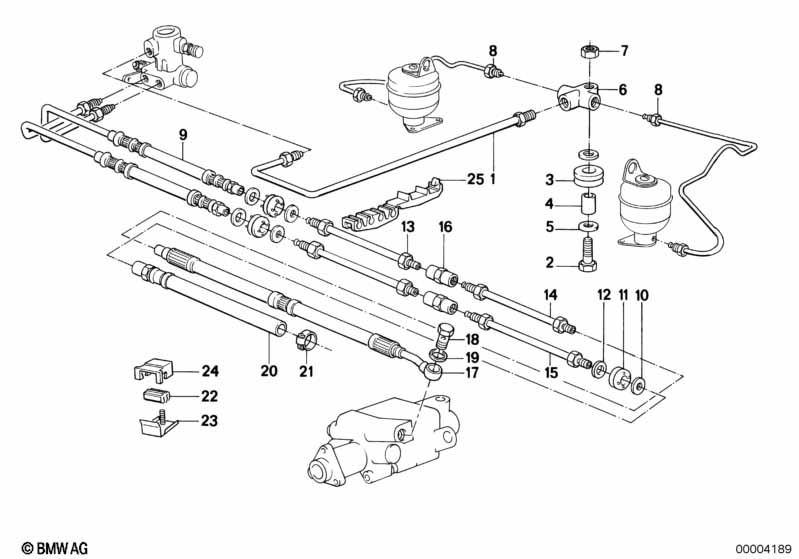

This Levelling device/tubing/attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 34322283835 | $11.17 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X40 | 1 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Rubber grommet | 1 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 04 | Spacer bush | 12MM | 1 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 05 | Washer | 6,4X25X1,5 | 2 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Distribution piece | M10X1 | 1 | 34341111435 | $8.08 | ENDED | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M6-10 ZN | 1 | 05/1993 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 07 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Hose line | 2 | 37131132865 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 10X25X1,5-ZNS3 | 3 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 11 | Rubber grommet | 3 | 34306865954 | Shop at ECS Tuning | ||||||
| 12 | Washer | 14X25X2-ZNS3 | 3 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 13 | Pipe | M10/M10-1080MM | 2 | 34326755607 | $10.03 | Shop at ECS Tuning | ||||
| 14 | Pipe | M10/M10-2200MM | 1 | 34326755656 | $8.97 | Shop at ECS Tuning | ||||
| 15 | Pipe | M10/M10-2770MM | 1 | 34326755673 | $17.08 | Shop at ECS Tuning | ||||
| 16 | Intermediate piece | M10X1 | 2 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 17 | Feed line | 1 | 37131137155 | Shop at ECS Tuning | ||||||
| 18 | Hollow bolt | M12X1,5 | 1 | 32411140945 | $6.42 | Shop at ECS Tuning | ||||
| 19 | Gasket ring | A12X17-CU | 2 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 20 | Hose line | 1 | 37131134027 | ENDED | Shop at ECS Tuning | |||||
| 21 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 22 | Rubber buffer | X | 37131130202 | $0.45 | Shop at ECS Tuning | |||||
| 23 | Bow | X | 37131133424 | $3.43 | Shop at ECS Tuning | |||||
| 24 | Holder | X | 37131133423 | $0.32 | Shop at ECS Tuning | |||||
| 25 | Spacer, 4-way | 2 | 34326777692 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
