Rear axle carrier for BMW 3 Series E36 328i (1999)

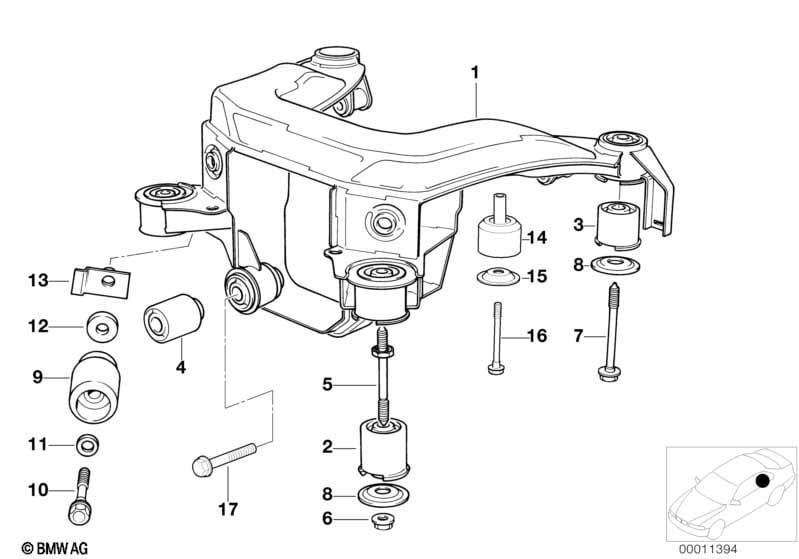

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33311092625 | $785.49 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set rubber mounting | D=60,5MM | 1 | 33319059300 | $76.91 | Shop at ECS Tuning | ||||
| 03 | Set rubber mounting | D=62,5MM | 1 | 33319059301 | $76.91 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 1 | 33171134871 | $17.20 | Shop at ECS Tuning | |||||
| 05 | Threaded bolt | 2 | 33311136428 | $4.70 | Shop at ECS Tuning | |||||
| 06 | Collar nut | M12X1,5 | 2 | 33311133463 | $1.26 | Shop at ECS Tuning | ||||
| 07 | Reduced-shaft bolt | M12X1,5X116-8.8 | 2 | 33326760361 | $2.27 | Shop at ECS Tuning | ||||
| 08 | Stopper | 70MM | 4 | 33331132546 | $2.44 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M12X1,5X80 ZNS3 | 1 | 33176760337 | $1.81 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Rear axle carrier?
- This technical diagram illustrates the Rear axle carrier within the Rear Axle group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Rear axle carrier (Part #33311092625).
- Which models use the hardware listed in this Rear axle carrier?
- The hardware and components featured in the Rear axle carrier are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Rear axle carrier (33311092625) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear axle carrier assembly?
- Each item in the Rear axle carrier corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Rear axle carrier by locating its position on the schematic, which then links to the official BMW part number 33311092625 for the Rear Axle section.
