Levelling device/tubing front for BMW 5 Series E34 525td (1996)

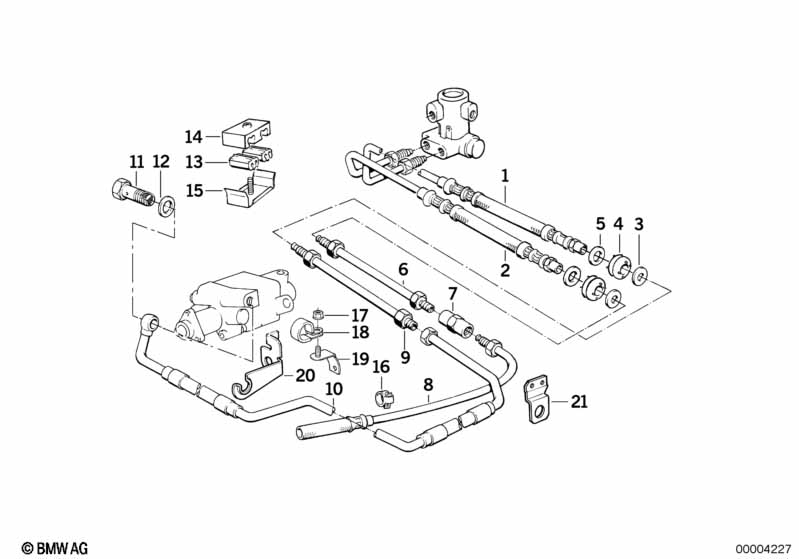

This Levelling device/tubing front technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feed line | 1 | 37131134170 | Shop at ECS Tuning | ||||||
| 02 | Return pipe | 1 | 37131134171 | Shop at ECS Tuning | ||||||
| 03 | Washer | 10X25X1,5-ZNS3 | 2 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 2 | 34306865954 | Shop at ECS Tuning | ||||||
| 05 | Washer | 14X25X2-ZNS3 | 2 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 06 | Pipe | M10/M10-2915MM | 1 | 34326755121 | $17.08 | Shop at ECS Tuning | ||||
| 07 | Intermediate piece | M10X1 | 1 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 08 | Return pipe | 1 | 37131134574 | Shop at ECS Tuning | ||||||
| 09 | Pipe | M10/M10-3120MM | 1 | 34326755686 | $17.08 | Shop at ECS Tuning | ||||
| 10 | Feed line | 1 | 32411137041 | Shop at ECS Tuning | ||||||
| 11 | Hollow bolt | M12X1,5 | 1 | 32411140945 | $6.42 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | A12X17-CU | 2 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Rubber buffer | X | 37131130202 | $0.45 | Shop at ECS Tuning | |||||
| 14 | Holder | 9 | 37131130200 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bow | 9 | 37131130201 | $10.82 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M6X16-Z3 | 1 | 07119915123 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Clamp | D=8/6,4 | 1 | 12521279635 | $1.92 | ENDED | Shop at ECS Tuning | |||
| 20 | Holder | 1 | 32411140910 | $5.47 | Shop at ECS Tuning | |||||
| 21 | Holder | 1 | 37131137623 | $1.50 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525td Levelling device/tubing front?
- This technical diagram illustrates the Levelling device/tubing front within the Rear Axle group for the 5 Series E34 525td produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Feed line (Part #37131134170).
- Which models use the hardware listed in this Levelling device/tubing front?
- The hardware and components featured in the Levelling device/tubing front are specific to the 5 Series E34 525td produced during 1996. These technical specifications ensure that parts like the Feed line (37131134170) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Levelling device/tubing front assembly?
- Each item in the Levelling device/tubing front corresponds to the numbered list below the illustration. For the 5 Series E34 525td, you can identify the Feed line by locating its position on the schematic, which then links to the official BMW part number 37131134170 for the Rear Axle section.
