Headlight vertical aim control sensor for BMW 7 Series E32 740i (1994)

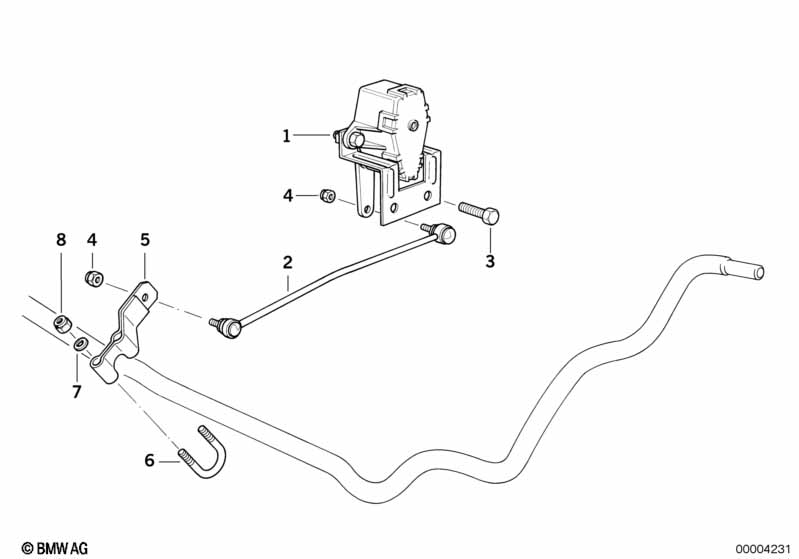

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to XENON-LIGHT |
|||||||||
| 01 | Rear axle sensor-head light aim control | 1 | 63121390670 | $75.76 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rod | 1 | 63128360084 | $63.27 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X16U2-8.8ZNS3 | 2 | 07119904279 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Lever | 1 | 37121132470 | $27.20 | Shop at ECS Tuning | |||||
| 06 | Bow | 1 | 37121123877 | $4.42 | Shop at ECS Tuning | |||||
| 07 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740i Headlight vertical aim control sensor?
- This technical diagram illustrates the Headlight vertical aim control sensor within the Rear Axle group for the 7 Series E32 740i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Rear axle sensor-head light aim control (Part #63121390670).
- Which models use the hardware listed in this Headlight vertical aim control sensor?
- The hardware and components featured in the Headlight vertical aim control sensor are specific to the 7 Series E32 740i produced during 1994. These technical specifications ensure that parts like the Rear axle sensor-head light aim control (63121390670) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight vertical aim control sensor assembly?
- Each item in the Headlight vertical aim control sensor corresponds to the numbered list below the illustration. For the 7 Series E32 740i, you can identify the Rear axle sensor-head light aim control by locating its position on the schematic, which then links to the official BMW part number 63121390670 for the Rear Axle section.
