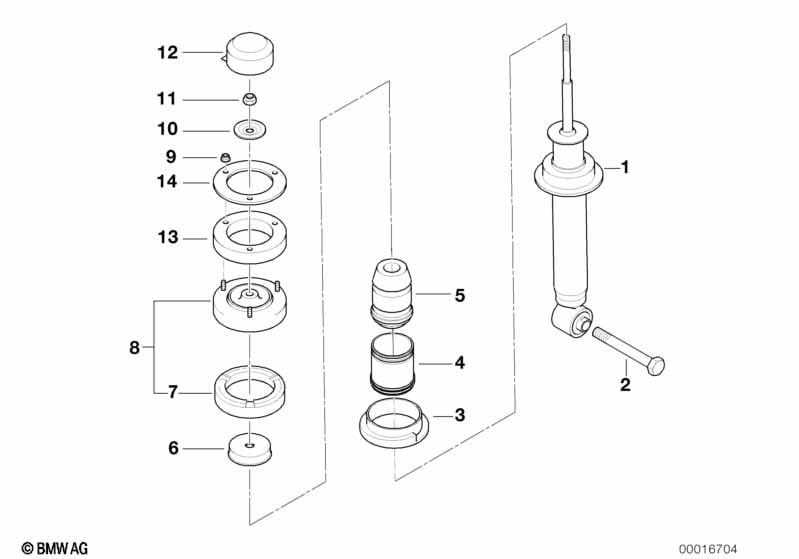

Single components for rear spring strut for BMW 5 Series E39 530i (2003)
This Single components for rear spring strut technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The following part is absolutely vital for strut replacements: Additional shock absorber, rear |
|||||||||
| 01 | Spring strut, rear | 2 | 33521093646 | $267.84 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X100 | 2 | 33521092072 | $1.92 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| For vehicles with M sports suspension II |
S705A=Yes |
|||||||||
| 01 | Spring strut, rear | 2 | 33522229146 | $322.07 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X100 | 2 | 33521092072 | $1.92 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 33526773882 | $1.03 | Shop at ECS Tuning | ||||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 01 | Spring strut, rear | 2 | 33521091922 | $322.07 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X100 | 2 | 33521092072 | $1.92 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 33526773882 | $1.03 | Shop at ECS Tuning | ||||
| For vehicles with National version eastern europe or Poor road package |
L816A=Yes S815A=Yes |
|||||||||
| 01 | Spring strut, rear | 2 | 33521093847 | $308.11 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X100 | 2 | 33521092072 | $1.92 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 33526773882 | $1.03 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M14X1,5X100 | 2 | 07/2003 | 33521092072 | $1.92 | Shop at ECS Tuning | |||
| 02 | Hex bolt | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 03 | Spring pad lower | 2 | 33531133671 | $8.38 | Shop at ECS Tuning | |||||
| 04 | Protection tube | 2 | 31331137932 | $2.25 | Shop at ECS Tuning | |||||
| For vehicles with National version eastern europe or Poor road package |
L816A=Yes S815A=Yes |
|||||||||
| 04 | Rubber boot | 2 | 37121129716 | $6.90 | Shop at ECS Tuning | |||||
| 05 | Auxiliary shock absorber, rear | 2 | 33531091031 | $20.55 | Shop at ECS Tuning | |||||
| For vehicles with M sports suspension II |
S705A=Yes |
|||||||||
| 05 | Auxiliary shock absorber, rear | 2 | 33532229697 | $20.55 | +core | Shop at ECS Tuning | ||||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 05 | Auxiliary shock absorber, rear | 2 | 33531093094 | $20.55 | +core | Shop at ECS Tuning | ||||
| 06 | Supporting Cup | 2 | 33521090282 | $4.73 | Shop at ECS Tuning | |||||
| 07 | Spring pad upper | 2 | 33531091924 | $5.03 | Shop at ECS Tuning | |||||
| 08 | Guide support | 2 | 33521091710 | $61.80 | Shop at ECS Tuning | |||||
| For vehicles with National version eastern europe or Poor road package |
L816A=Yes S815A=Yes |
|||||||||
| 08 | Guide support | 2 | 33501094977 | $97.25 | ENDED | Shop at ECS Tuning | ||||
| 09 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 10 | Plate | 2 | 33521092986 | $6.03 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 33526773882 | $1.03 | Shop at ECS Tuning | ||||
| 12 | Protection cap | 2 | 33521090281 | $3.00 | Shop at ECS Tuning | |||||
| For vehicles with National version eastern europe or Poor road package |
L816A=Yes S815A=Yes |
|||||||||
| 13 | Adapter | 2 | 33521091859 | $48.37 | Shop at ECS Tuning | |||||
| 14 | Washer-gasket | 2 | 33521091860 | $3.75 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
