Rear spring strut assy EDC for BMW 5 Series E39 528i (2000)

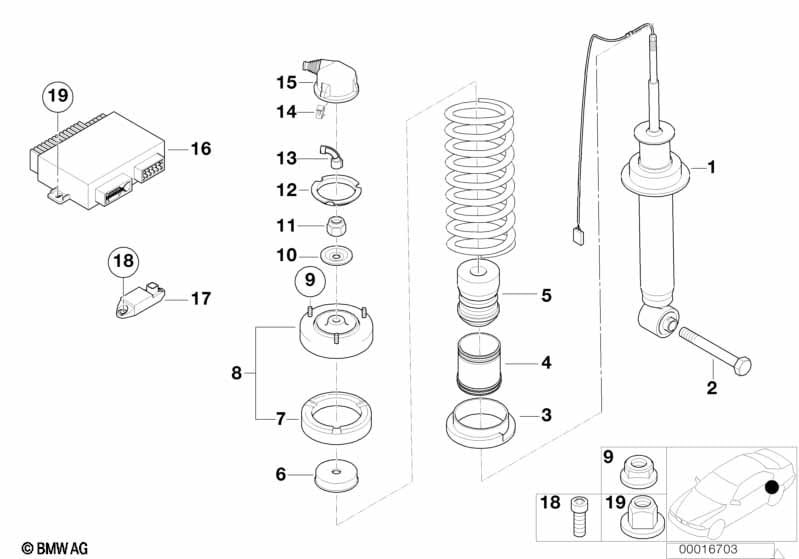

This Rear spring strut assy EDC technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The following part is absolutely vital for strut replacements: Additional shock absorber, rear |
|||||||||
| 01 | Spring strut, rear | EDC | 2 | 33521092379 | $563.61 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X100 | 2 | 33521092072 | $1.92 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M14X1,5X100 | 2 | 07/2003 | 33521092072 | $1.92 | Shop at ECS Tuning | |||
| 02 | Hex bolt | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 03 | Spring pad lower | 2 | 33531133671 | $8.38 | Shop at ECS Tuning | |||||
| 04 | Protection tube | 2 | 31331137932 | $2.25 | Shop at ECS Tuning | |||||
| 05 | Auxiliary shock absorber, rear | 2 | 33531091602 | $20.55 | Shop at ECS Tuning | |||||
| 06 | Supporting Cup | 2 | 37121090310 | $3.65 | Shop at ECS Tuning | |||||
| 07 | Spring pad upper | 2 | 33531091924 | $5.03 | Shop at ECS Tuning | |||||
| 08 | Guide support | 2 | 33521091711 | $97.25 | Shop at ECS Tuning | |||||
| 09 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 10 | Plate | 2 | 33526782699 | Shop at ECS Tuning | ||||||
| 11 | Self-locking hex nut | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 12 | Clamp ring | 2 | 33521090892 | $1.92 | Shop at ECS Tuning | |||||
| 13 | Tubing guide | 2 | 31321090618 | $4.01 | Shop at ECS Tuning | |||||
| 14 | Clamp | 2 | 61131382377 | $0.62 | Shop at ECS Tuning | |||||
| 15 | Protection cap | 2 | 33521090891 | $4.73 | Shop at ECS Tuning | |||||
| 16 | Control unit EDC uncoded | 1 | 09/2000 | 37151092572 | $516.69 | ENDED | Shop at ECS Tuning | |||
| 17 | Accelerating sensor | 2 | 37146781405 | $102.03 | Shop at ECS Tuning | |||||
| 18 | ISA screw | M6X10-8.8-ZNS3 | 4 | 07129903804 | $1.93 | Shop at ECS Tuning | ||||
| 19 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
