Levelling device/tubing rear for BMW 7 Series E38 735i (1998)

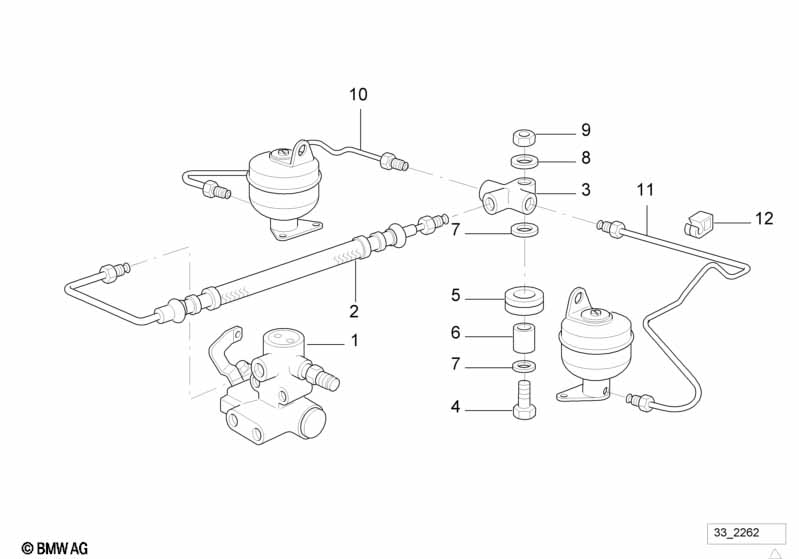

This Levelling device/tubing rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating valve | 1 | 37121090628 | $339.87 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Hose line | 1 | 37131091124 | $37.65 | Shop at ECS Tuning | |||||
| 03 | Distribution piece | M10X1 | 1 | 34341111435 | $8.08 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X40 | 1 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Rubber grommet | 1 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 06 | Spacer bush | 12MM | 1 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 07 | Washer | 6,4X25X1,5 | 2 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Pipe | M10/M10-985MM | 1 | 34326755602 | $10.03 | Shop at ECS Tuning | ||||
| 11 | Pipe | M10/M10 | 1 | 34306779187 | $38.58 | Shop at ECS Tuning | ||||
| 12 | Brake pipe bracket | 3 | 34326855500 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
