Levelling device/tubing front for BMW 7 Series E38 740i (1998)

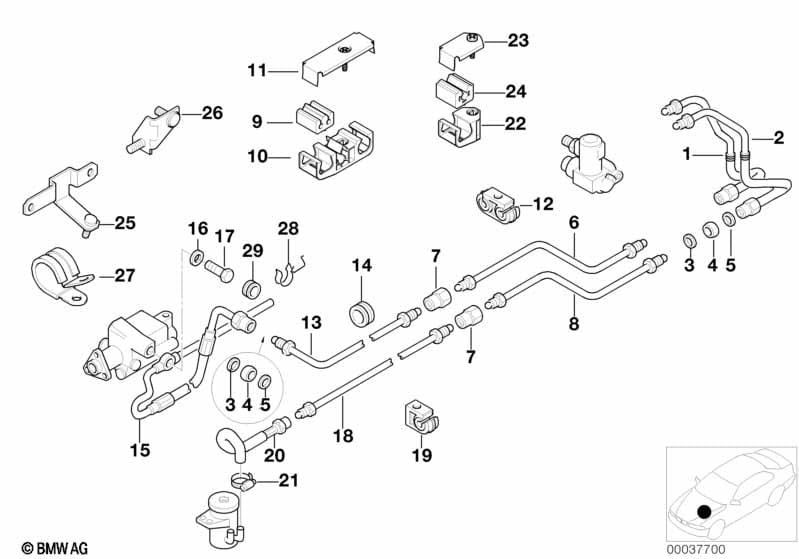

This Levelling device/tubing front technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feed line | 1 | 37131091125 | $39.47 | Shop at ECS Tuning | |||||
| 02 | Return pipe | 1 | 37131091126 | $39.47 | Shop at ECS Tuning | |||||
| 03 | Washer | 14X25X2-ZNS3 | 2 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 2 | 34306865954 | Shop at ECS Tuning | ||||||
| 05 | Washer | 10X25X1,5-ZNS3 | 2 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 06 | Pipe | M10/M10-3440MM | 1 | 34406755697 | $14.50 | Shop at ECS Tuning | ||||
| 07 | Intermediate piece | M10X1 | 2 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 08 | Pipe | M10/M10-3520MM | 1 | 34401153834 | $22.35 | Shop at ECS Tuning | ||||
| 09 | Tubing support | 4-FACH | 3 | 16121181593 | $2.17 | Shop at ECS Tuning | ||||
| 10 | Rubber buffer | 3 | 37131091419 | $0.78 | Shop at ECS Tuning | |||||
| 11 | Fuel pipe bracket | 3 | 16121181594 | $2.77 | Shop at ECS Tuning | |||||
| 12 | Brake pipe bracket | 7 | 34326880898 | Shop at ECS Tuning | ||||||
| 13 | Pipe | M10/M10-1705MM | 1 | 34326755636 | $10.03 | Shop at ECS Tuning | ||||
| 14 | Damper ring | 18X28X6 | 1 | 61611353754 | $1.18 | Shop at ECS Tuning | ||||
| 15 | Pressure hose assy | 1 | 09/1998 | 32411092274 | $229.83 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A10X13,5-CUSN | 2 | 32411093595 | $0.58 | Shop at ECS Tuning | ||||
| 17 | Hollow bolt | M10X1 | 1 | 32411140944 | $5.44 | Shop at ECS Tuning | ||||
| 18 | Pipe | M10/M10-1260MM | 1 | 34326755616 | $10.03 | Shop at ECS Tuning | ||||
| 19 | Brake pipe bracket | 4 | 34326855500 | Shop at ECS Tuning | ||||||
| 20 | Return pipe | L=190MM | 1 | 37131092354 | $15.58 | Shop at ECS Tuning | ||||
| 21 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 22 | Holder | 1 | 37131133420 | $0.87 | Shop at ECS Tuning | |||||
| 23 | Bow | 1 | 37131133421 | $3.33 | Shop at ECS Tuning | |||||
| 24 | Absorbing piece | 1 | 21521159564 | $0.63 | Shop at ECS Tuning | |||||
| 25 | Support pressure hose assy left | 1 | 09/1998 | 32411095320 | $6.27 | Shop at ECS Tuning | ||||
| 25 | Support pressure hose assy right | 1 | 09/1998 | 32411095322 | ENDED | Shop at ECS Tuning | ||||
| 27 | Clamp | D=22/6,4 | 2 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 28 | Support pressure hose assy | 1 | 32411092229 | $2.28 | Shop at ECS Tuning | |||||
| 29 | Grommet | 1 | 34411102688 | $2.83 | ENDED | Shop at ECS Tuning |
