Levell.device/regulating valve/att.parts for BMW 7 Series E38 740i (1996)

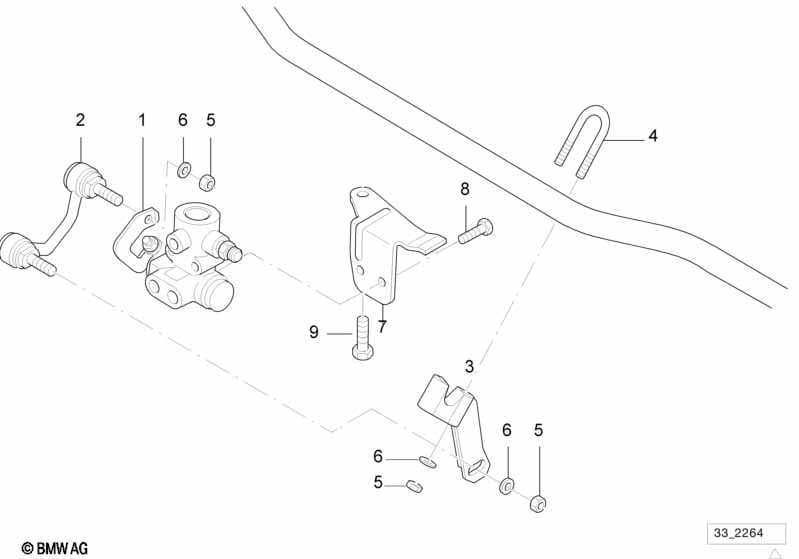

This Levell.device/regulating valve/att.parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating valve | 1 | 37121090628 | $339.87 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Rod | 1 | 37121090630 | $20.45 | Shop at ECS Tuning | |||||
| 03 | Lever | 1 | 37121090627 | $8.85 | Shop at ECS Tuning | |||||
| 04 | Bow | 1 | 37121123877 | $4.42 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Regulating valve bracket | 1 | 37121090629 | $3.65 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Levell.device/regulating valve/att.parts?
- This technical diagram illustrates the Levell.device/regulating valve/att.parts within the Rear Axle group for the 7 Series E38 740i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Regulating valve (Part #37121090628).
- Which models use the hardware listed in this Levell.device/regulating valve/att.parts?
- The hardware and components featured in the Levell.device/regulating valve/att.parts are specific to the 7 Series E38 740i produced during 1996. These technical specifications ensure that parts like the Regulating valve (37121090628) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Levell.device/regulating valve/att.parts assembly?
- Each item in the Levell.device/regulating valve/att.parts corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Regulating valve by locating its position on the schematic, which then links to the official BMW part number 37121090628 for the Rear Axle section.
