Levelling device/pressure accumulator for BMW 7 Series E38 735i (1998)

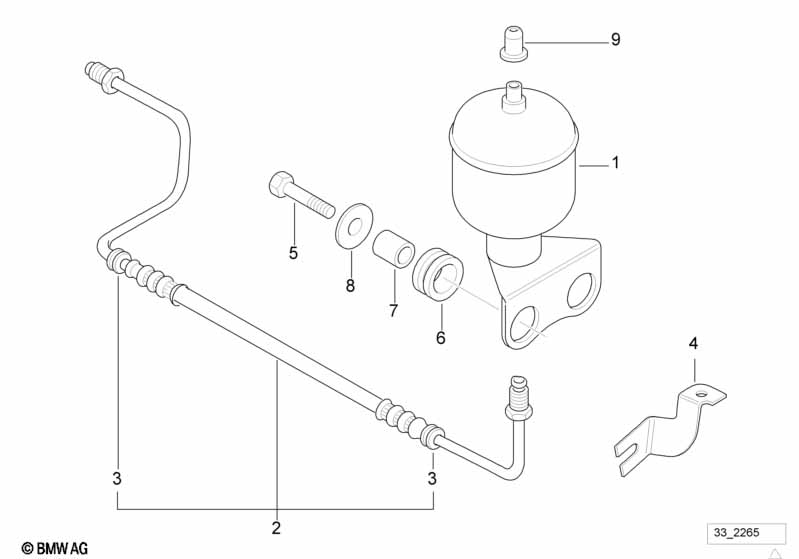

This Levelling device/pressure accumulator technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure accumulator | 2 | 37211090631 | $192.97 | +core | Shop at ECS Tuning | ||||
| 02 | Pressure hose assy left | 1 | 37131091127 | $54.08 | Shop at ECS Tuning | |||||
| 02 | Pressure hose assy right | 1 | 37131091128 | $54.08 | Shop at ECS Tuning | |||||
| For vehicles with Electronic Damper Control (EDC) |
S223A=Yes |
|||||||||
| 02 | Pressure hose assy left | 1 | 37131091319 | $51.35 | Shop at ECS Tuning | |||||
| 02 | Pressure hose assy right | 1 | 37131091320 | $51.35 | Shop at ECS Tuning | |||||
| 03 | Rubber grommet | 3 | 07147267586 | Shop at ECS Tuning | ||||||
| 04 | Bracket left | 1 | 37131091150 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M6X25 | 4 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Rubber grommet | 4 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 07 | Spacer bush | 12MM | 4 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 08 | Washer | 6,4X25X1,5 | 4 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Grommet | 2 | 34511090111 | $1.85 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
