Stabilizer, rear for BMW 7 Series E38 730d (2001)

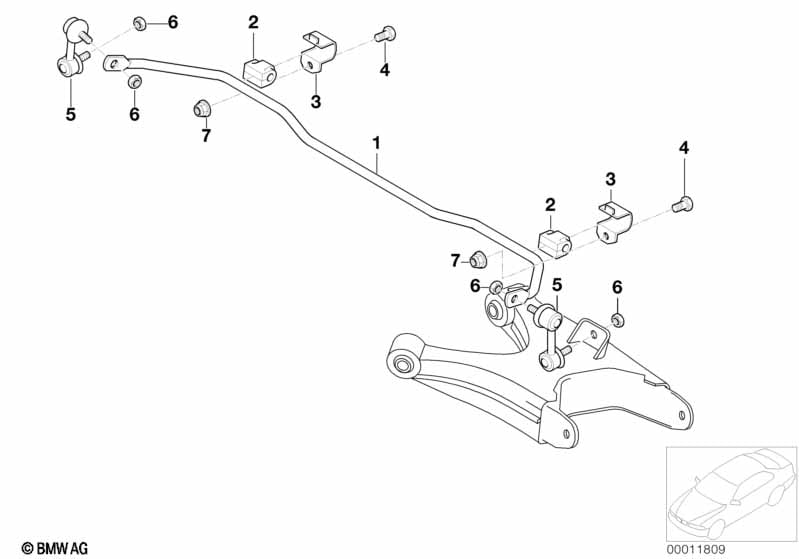

This Stabilizer, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=10MM | 1 | 33551091402 | $155.27 | ENDED | Shop at ECS Tuning | |||
| 02 | Stabilizer rubber mounting | D=10MM | 2 | 33551091511 | $8.79 | Shop at ECS Tuning | ||||
| 03 | Stabilizer support | 2 | 33506779734 | $3.04 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Stabilizer link | 2 | 33551095696 | $32.08 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M10-10 ZNS3 | 4 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 06 | Hex nut wiht flange | M10-10 ZNS3 | 4 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730d Stabilizer, rear?
- This technical diagram illustrates the Stabilizer, rear within the Rear Axle group for the 7 Series E38 730d produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizer, rear (Part #33551091402).
- Which models use the hardware listed in this Stabilizer, rear?
- The hardware and components featured in the Stabilizer, rear are specific to the 7 Series E38 730d produced during 2001. These technical specifications ensure that parts like the Stabilizer, rear (33551091402) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer, rear assembly?
- Each item in the Stabilizer, rear corresponds to the numbered list below the illustration. For the 7 Series E38 730d, you can identify the Stabilizer, rear by locating its position on the schematic, which then links to the official BMW part number 33551091402 for the Rear Axle section.
