Output shaft for BMW 3 Series E30 325e (1987)

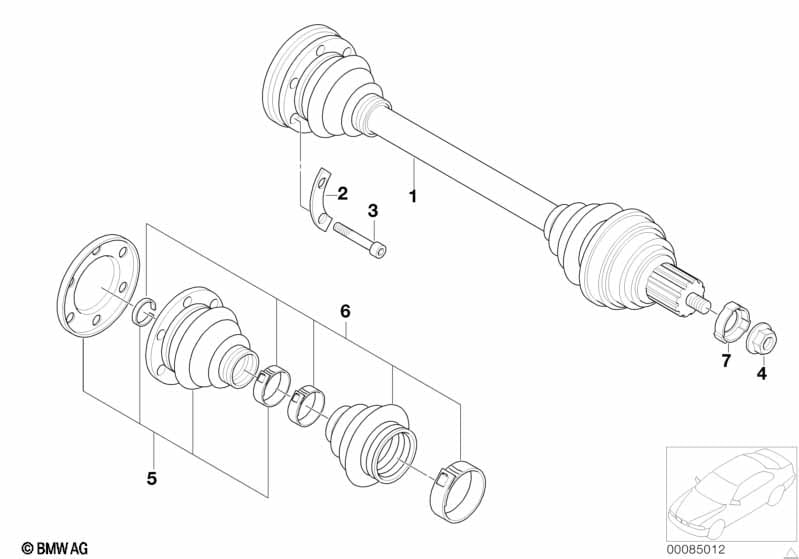

This Output shaft technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN output shaft | 2 | 33211226333 | $602.60 | Shop at ECS Tuning | |||||
| 01 | RP REMAN output shaft ABS | 2 | 33211225893 | $610.38 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reinforcement | D=10MM ZNS3 | 6 | 33207572717 | $2.57 | Shop at ECS Tuning | ||||
| 03 | Torx screw with ribs | M10X43 ZNS3 | X | 33207572716 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Collar nut | M22X1,5 | 2 | 33411125664 | $7.28 | Shop at ECS Tuning | ||||
| 05 | Repair kit bellows, interior | 2 | 33219067895 | $52.88 | Shop at ECS Tuning | |||||
| 06 | Repair kit bellows, exterior | 2 | 33219067810 | $50.57 | Shop at ECS Tuning | |||||
| 07 | Securing plate | 2 | 33411124945 | $0.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Output shaft?
- This technical diagram illustrates the Output shaft within the Rear Axle group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN output shaft (Part #33211226333).
- Which models use the hardware listed in this Output shaft?
- The hardware and components featured in the Output shaft are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the RP REMAN output shaft (33211226333) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Output shaft assembly?
- Each item in the Output shaft corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the RP REMAN output shaft by locating its position on the schematic, which then links to the official BMW part number 33211226333 for the Rear Axle section.
