Rear axle support/wheel suspension for BMW 5 Series E39 528i (2000)

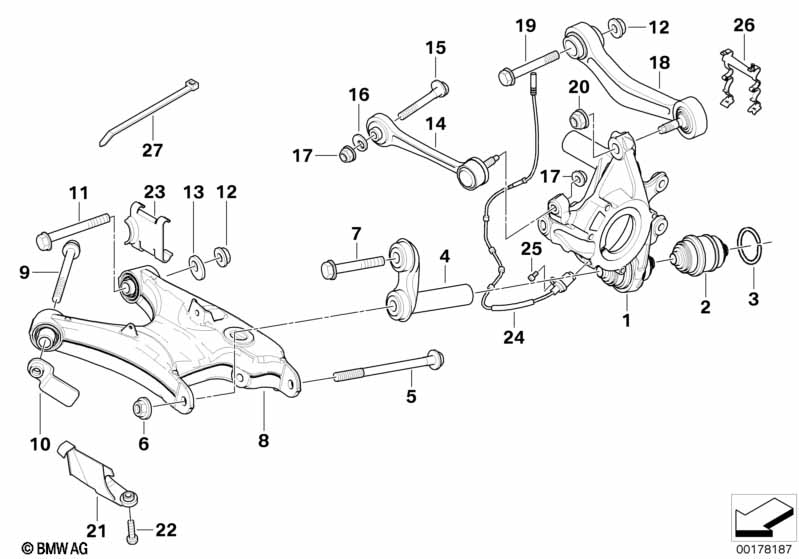

This Rear axle support/wheel suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel carrier, rear left | 1 | 12/2001 | 33321091335 | $542.05 | Shop at ECS Tuning | ||||
| 01 | Wheel carrier, rear right | 1 | 12/2001 | 33321091336 | $542.05 | Shop at ECS Tuning | ||||
| 02 | Ball joint | 2 | 33326767748 | $63.35 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Snap ring | 2 | 33321091687 | $1.25 | Shop at ECS Tuning | |||||
| 03 | Snap ring | 2 | 33321091687 | $1.25 | Shop at ECS Tuning | |||||
| 04 | Integral link | 2 | 33326770749 | $48.90 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M16X1,5X263 | 2 | 33321092870 | $8.78 | Shop at ECS Tuning | ||||
| 06 | Self-locking collar nut | M16X1,5-10 ZNS3 | 2 | 33326760383 | $4.08 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M12X1,5X67 ZNS3 | 2 | 33326763463 | $3.11 | Shop at ECS Tuning | ||||
| 08 | Left swing part | 1 | 33326755471 | $401.50 | Shop at ECS Tuning | |||||
| 08 | Right swing part | 1 | 33326755472 | $401.50 | Shop at ECS Tuning | |||||
| 09 | Isa screw with washer | M10X100 | 2 | 11117676886 | $11.23 | Shop at ECS Tuning | ||||
| 10 | Locking nut | 2 | 33321091707 | $2.14 | Shop at ECS Tuning | |||||
| 11 | Eccentric bolt | M12X1,5X98 | 2 | 33321095102 | $6.78 | Shop at ECS Tuning | ||||
| 12 | Self-locking collar nut | M12X1,5-10 ZNS3 | 4 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Eccentric flat washer | 2 | 33306786186 | $2.52 | Shop at ECS Tuning | |||||
| 14 | Guiding suspension link | 2 | 12/2001 | 33326768791 | $236.12 | Shop at ECS Tuning | ||||
| 15 | Eccentric bolt | M10X66 ZNS3 | 2 | 33306760591 | $4.50 | Shop at ECS Tuning | ||||
| 16 | Eccentric flat washer | 2 | 33306760592 | $1.10 | Shop at ECS Tuning | |||||
| 17 | Hex nut wiht flange | M10-10 ZNS3 | 4 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 18 | Wishbone, left | 1 | 33326767831 | $240.76 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 18 | Wishbone, right | 1 | 33326767832 | $240.76 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Collar screw | M12X1,5X90 | 1 | 33321091058 | $1.48 | Shop at ECS Tuning | ||||
| -- | Combination nut | M14X1,5-10ZNS3 | 1 | 33326760380 | $2.48 | Shop at ECS Tuning | ||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 1 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Collar screw | M12X1,5X90 | 2 | 33321091058 | $1.48 | Shop at ECS Tuning | ||||
| 20 | Combination nut | M14X1,5-10ZNS3 | 2 | 33326760380 | $2.48 | Shop at ECS Tuning | ||||
| 23 | Stone-chip guard left rear | 1 | 08/1996 | 33321094081 | $6.56 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Left swing part | X | 08/1996 | 33321093713 | $300.20 | ENDED | Shop at ECS Tuning | |||
| 23 | Stone-chip guard right rear | 1 | 08/1996 | 33321094082 | $6.56 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Right swing part | X | 08/1996 | 33321093714 | $287.57 | ENDED | Shop at ECS Tuning | |||
| 24 | Pulse generator, ABS | 2 | 09/1998 | 01/2001 | 34526756376 | $149.61 | Shop at ECS Tuning | |||
| 24 | Pulse generator, ABS | 2 | 09/1998 | 34526756376 | $149.61 | Shop at ECS Tuning | ||||
| 26 | Left bracket f pulse generator ABS | 1 | 33181182957 | $2.68 | Shop at ECS Tuning | |||||
| 26 | Right bracket f pulse generator ABS | 1 | 33181182958 | $2.68 | Shop at ECS Tuning | |||||
| 27 | Cable tie | L=292MM/B=4,8MM | 4 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
