Levell.device, air spring and ctrl unit for BMW 5 Series E39 520i (2001)

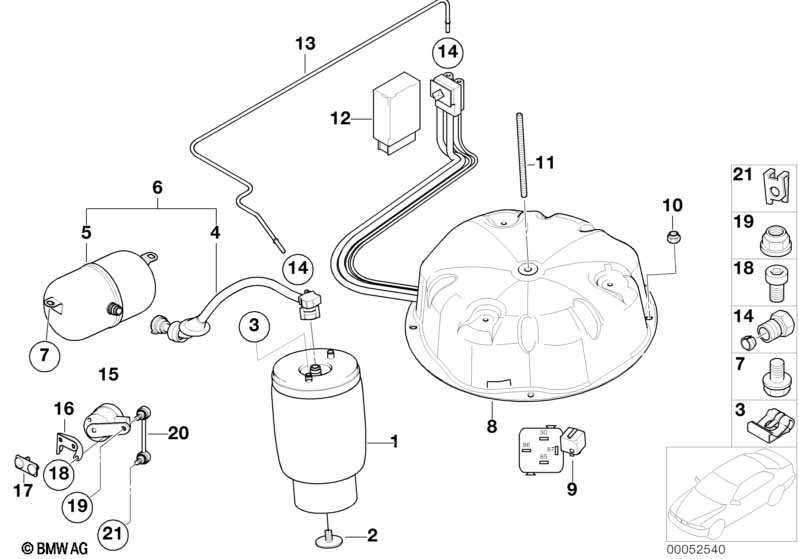

This Levell.device, air spring and ctrl unit technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pneumatic spring, left | 1 | 37121094613 | $187.40 | ENDED | Shop at ECS Tuning | ||||
| 01 | Pneumatic spring, right | 1 | 37121094614 | $187.40 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sport suspension+lowered+ride-height |
S227A=Yes |
|||||||||
| 01 | Pneumatic spring, left | 1 | 37121095081 | $187.40 | ENDED | Shop at ECS Tuning | ||||
| 01 | Pneumatic spring, right | 1 | 37121095082 | $187.40 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X20 | 2 | 37121093994 | $1.87 | Shop at ECS Tuning | ||||
| 03 | Circlip | B8 | 4 | 07129904492 | Shop at ECS Tuning | |||||
| 06 | Air reservoir with pipe left | 1 | 12/2000 | 37126752287 | $81.62 | Shop at ECS Tuning | ||||
| 06 | Air reservoir with pipe right | 1 | 12/2000 | 37126752288 | $81.62 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Air supply device | 1 | 37226787616 | $807.75 | Shop at ECS Tuning | |||||
| 09 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M6-Z1 | 2 | 07119915702 | $0.28 | Shop at ECS Tuning | ||||
| 11 | Threaded rod | 1 | 71151092320 | $2.70 | Shop at ECS Tuning | |||||
| 12 | Air supply control unit | 1 | 37146874414 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Felt strip, self-adhesive | 130X40X3 MM | 1 | 54347248700 | $1.38 | Shop at ECS Tuning | ||||
| 13 | Left distribution piece pipe | 1 | 37131093791 | $5.92 | ENDED | Shop at ECS Tuning | ||||
| 13 | Right distribution piece pipe | 1 | 37131093792 | $6.28 | ENDED | Shop at ECS Tuning | ||||
| 14 | Screwed connection | D=4MM | 4 | 37221092403 | $3.00 | Shop at ECS Tuning | ||||
| 15 | Level sensor | 2 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| For vehicles with Xenon Light |
S522A=Yes |
|||||||||
| 15 | Level sensor | 2 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| 16 | Left ride height sensor bracket | 1 | 33311094061 | $6.00 | Shop at ECS Tuning | |||||
| 16 | Right ride height sensor bracket | 1 | 33311093703 | $4.73 | Shop at ECS Tuning | |||||
| 17 | Lock plate | 2 | 33311093516 | $3.24 | Shop at ECS Tuning | |||||
| 18 | Fillister-head screw | M5X10-8.8-ZNNIV | 4 | 07119904303 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Hex nut with plate | M6-8-ZNNIV SI | 6 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 20 | Regulating rod | 71,5MM | 2 | 37146752797 | $6.18 | Shop at ECS Tuning | ||||
| 21 | Clip | 2 | 33311093654 | $0.17 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
