Rear spring strut for BMW 5 Series E34 525ix (1995)

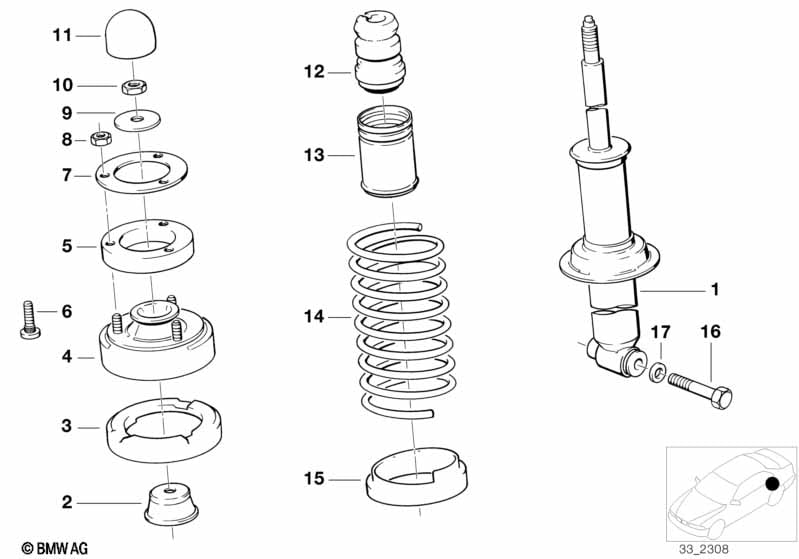

This Rear spring strut technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring strut, rear | BOGE/SACHS | 2 | 33521092278 | $335.21 | Shop at ECS Tuning | ||||
| 02 | Supporting Cup | 2 | 33521136063 | $3.59 | Shop at ECS Tuning | |||||
| 03 | Spring pad upper | 2 | 33531133670 | $7.82 | Shop at ECS Tuning | |||||
| 04 | Guide support | 2 | 33521132270 | $61.80 | Shop at ECS Tuning | |||||
| For vehicles with National version eastern europe |
L816A=Yes |
|||||||||
| 04 | Guide support | 2 | 07/1990 | 33521091693 | $61.80 | Shop at ECS Tuning | ||||
| 05 | Adapter | 2 | 07/1990 | 33521091694 | $48.37 | Shop at ECS Tuning | ||||
| 06 | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 07 | Washer-gasket | 2 | 33521129567 | $0.66 | Shop at ECS Tuning | |||||
| 08 | Self-locking collar nut | M8-8-ZNS3 | 6 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 09 | Support | 60MM | 2 | 33521129565 | $1.98 | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 11 | Cap | 2 | 33521132854 | $2.53 | Shop at ECS Tuning | |||||
| 12 | Auxiliary shock absorber, rear | 2 | 33531135624 | $20.55 | Shop at ECS Tuning | |||||
| 13 | Protection tube | 2 | 31331134314 | $2.25 | Shop at ECS Tuning | |||||
| For vehicles with National version eastern europe |
L816A=Yes |
|||||||||
| 13 | Rubber boot | 2 | 07/1990 | 37121129716 | $6.90 | Shop at ECS Tuning | ||||
| 15 | Spring pad lower | 2 | 33531133671 | $8.38 | Shop at ECS Tuning | |||||
| 16 | Hex bolt | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning | ||||
