Rear M techn.sports chassis spring strut for BMW 5 Series E34 520i (1990)

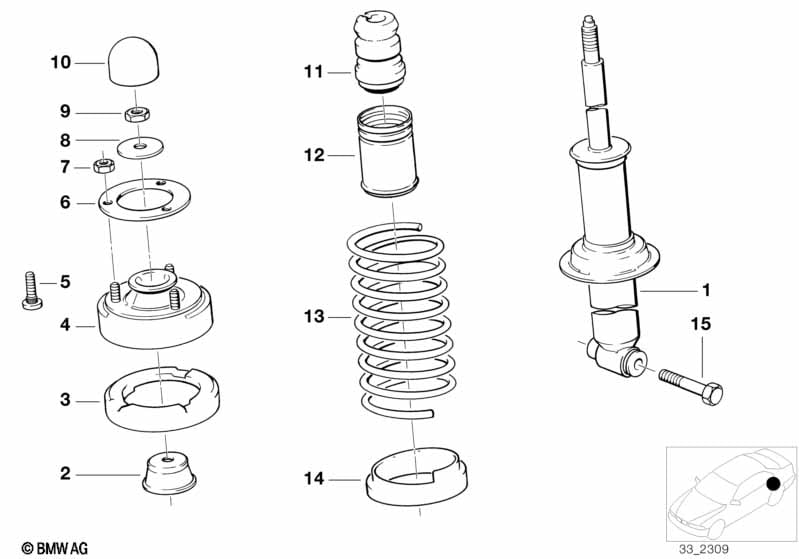

This Rear M techn.sports chassis spring strut technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring strut, rear | 2 | 09/1991 | 33522226592 | $402.59 | Shop at ECS Tuning | ||||
| 02 | Support | 2 | 09/1991 | 31331129507 | $2.67 | Shop at ECS Tuning | ||||
| 03 | Spring pad upper | 2 | 33531133670 | $7.82 | Shop at ECS Tuning | |||||
| 04 | Guide support | 2 | 33521132270 | $61.80 | Shop at ECS Tuning | |||||
| 05 | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 06 | Washer-gasket | 2 | 33521129567 | $0.66 | Shop at ECS Tuning | |||||
| 07 | Self-locking collar nut | M8-8-ZNS3 | 6 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 08 | Support | 60MM | 2 | 33521129565 | $1.98 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 10 | Cap | 2 | 33521132854 | $2.53 | Shop at ECS Tuning | |||||
| 11 | Auxiliary shock absorber, rear | 2 | 09/1991 | 33532226238 | $20.55 | Shop at ECS Tuning | ||||
| 12 | Rubber boot | 2 | 37121129716 | $6.90 | Shop at ECS Tuning | |||||
| 13 | Coil spring | 2 | 09/1991 | 33532226671 | Shop at ECS Tuning | |||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 13 | Coil spring | 2 | 09/1988 | 09/1991 | 33532226672 | $159.96 | Shop at ECS Tuning | |||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 13 | Coil spring | 2 | 09/1991 | 33532226672 | $159.96 | Shop at ECS Tuning | ||||
| 14 | Spring pad lower | 2 | 33531133671 | $8.38 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Rear M techn.sports chassis spring strut?
- This technical diagram illustrates the Rear M techn.sports chassis spring strut within the Rear Axle group for the 5 Series E34 520i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Spring strut, rear (Part #33522226592).
- Which models use the hardware listed in this Rear M techn.sports chassis spring strut?
- The hardware and components featured in the Rear M techn.sports chassis spring strut are specific to the 5 Series E34 520i produced during 1990. These technical specifications ensure that parts like the Spring strut, rear (33522226592) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear M techn.sports chassis spring strut assembly?
- Each item in the Rear M techn.sports chassis spring strut corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Spring strut, rear by locating its position on the schematic, which then links to the official BMW part number 33522226592 for the Rear Axle section.
