Rear-axle-drive for BMW 5 Series E28 528e (1987)

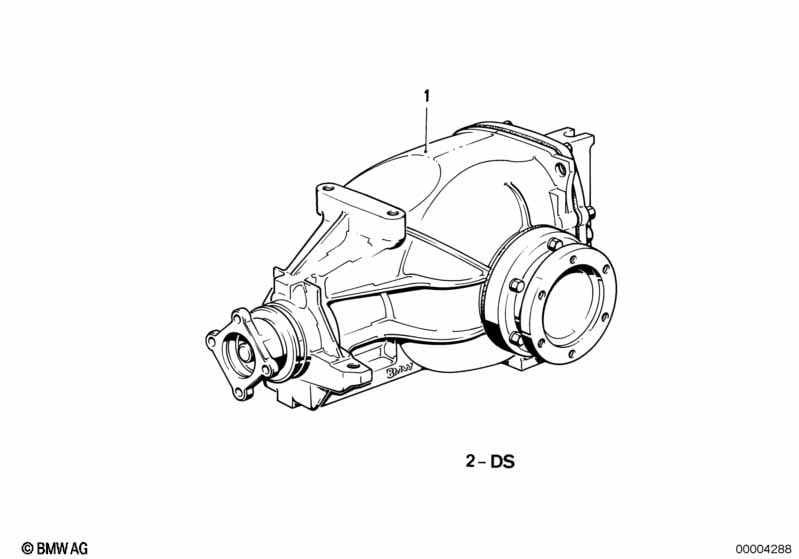

This Rear-axle-drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. final drive | I=45:13=3,46 | 1 | 12/1986 | 33101210674 | $1452.46 | ENDED | Shop at ECS Tuning | ||
| 01 | Exch. final drive with differential | I=45:13=3,46 | 1 | 12/1986 | 33101210676 | $2405.90 | ENDED | Shop at ECS Tuning | ||
| 02 | Gasket set differential | TYP 188 | 1 | 33101210518 | $68.75 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Rear-axle-drive?
- This technical diagram illustrates the Rear-axle-drive within the Rear Axle group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Exch. final drive (Part #33101210674).
- Which models use the hardware listed in this Rear-axle-drive?
- The hardware and components featured in the Rear-axle-drive are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Exch. final drive (33101210674) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear-axle-drive assembly?
- Each item in the Rear-axle-drive corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Exch. final drive by locating its position on the schematic, which then links to the official BMW part number 33101210674 for the Rear Axle section.
