Drive flange suspension/gasket ring for BMW 5 Series E28 528e (1987)

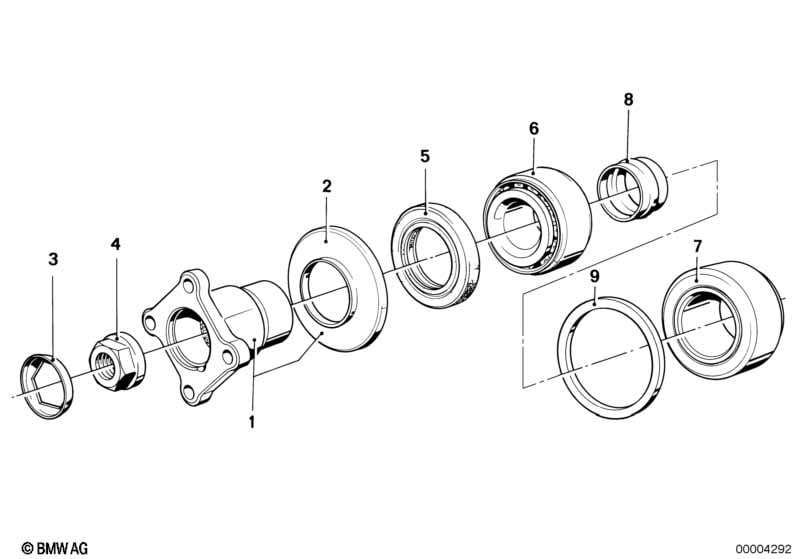

This Drive flange suspension/gasket ring technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Dustcover plate | 81MM | 1 | 33121200284 | $2.38 | Shop at ECS Tuning | ||||
| 03 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 05 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 06 | Tapered roller bearing | 31,7X73,0X29,3 | 1 | 33121204312 | Shop at ECS Tuning | |||||
| 07 | Tapered roller bearing | 1 | 33121204315 | Shop at ECS Tuning | ||||||
| 08 | Clamping bush | 1 | 33121744368 | $9.14 | Shop at ECS Tuning | |||||
| 09 | Spacer rings set | 3,255MM-3,435MM | 1 | 33129065179 | $36.42 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Drive flange suspension/gasket ring?
- This technical diagram illustrates the Drive flange suspension/gasket ring within the Rear Axle group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Dustcover plate (Part #33121200284).
- Which models use the hardware listed in this Drive flange suspension/gasket ring?
- The hardware and components featured in the Drive flange suspension/gasket ring are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Dustcover plate (33121200284) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drive flange suspension/gasket ring assembly?
- Each item in the Drive flange suspension/gasket ring corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Dustcover plate by locating its position on the schematic, which then links to the official BMW part number 33121200284 for the Rear Axle section.
