Differential-bevel gear inst.parts for BMW R45-R65LS..78-85 R65T (1985)

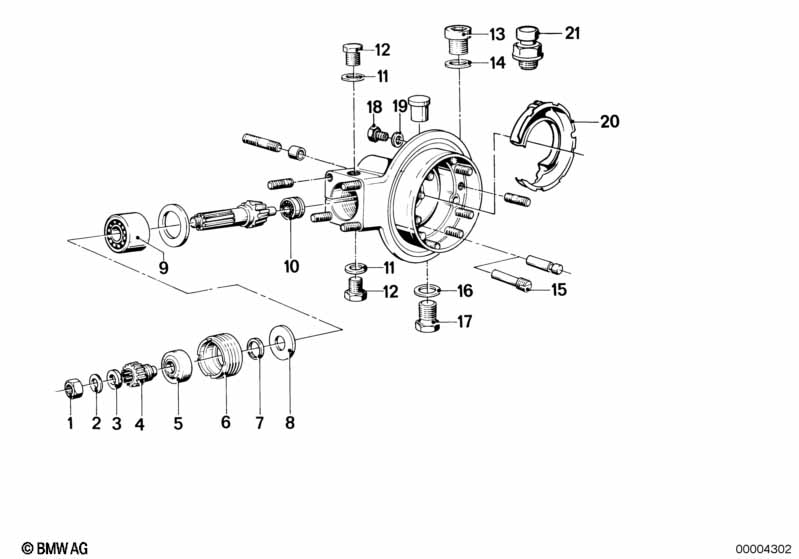

This Differential-bevel gear inst.parts technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65T. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Collar nut | M16X1.5 | 1 | 23211230084 | $5.71 | Shop at ECS Tuning | ||||
| 02 | Washer | 17 | 1 | 07119931093 | $0.58 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 16.2X22.5X3 PUR | 1 | 33121233302 | $2.67 | Shop at ECS Tuning | ||||
| 04 | Hub | 1 | 33121233303 | $60.60 | Shop at ECS Tuning | |||||
| 05 | Shaft seal | 28X55X9 | 1 | 33121231542 | Shop at ECS Tuning | |||||
| 06 | Threaded ring | 1 | 33121230355 | $11.68 | Shop at ECS Tuning | |||||
| 07 | Shim | 1 | 33121230353 | $11.11 | Shop at ECS Tuning | |||||
| 08 | Washer | 1 | 33121230525 | $2.55 | Shop at ECS Tuning | |||||
| 09 | Angular ball bearing | 3305-DA | 1 | 33121230247 | $83.26 | Shop at ECS Tuning | ||||
| 10 | Needle sleeve | 15X30X18 | 1 | 09/1980 | 33121236998 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A12X15,5 AL | 2 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Screw plug | AM12X1,5 | 2 | 07119909703 | Shop at ECS Tuning | |||||
| 12 | Screw plug | M18X1,5-ZNS | 1 | 07119919143 | $1.87 | ENDED | Shop at ECS Tuning | |||
| 14 | Gasket ring | A18X22-AL | 1 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Screw plug, magnetic | M14X1,5 | 1 | 11131744329 | $11.30 | Shop at ECS Tuning | ||||
| 18 | Screw plug | M8X1-ZNS3 | 1 | 09/1980 | 07119907133 | Shop at ECS Tuning | ||||
| 19 | Gasket ring | A8X11,5-AL | 1 | 09/1980 | 07119963041 | $0.57 | Shop at ECS Tuning | |||
| 20 | Protection plate | 1 | 09/1980 | 33111239080 | $25.78 | Shop at ECS Tuning | ||||
| 21 | Screw plug with ventilation | M18X1,5 | 1 | 09/1980 | 33111238838 | $22.69 | Shop at ECS Tuning |
