Rear wheel swinging arm for BMW R45-R65LS..78-85 R65LS (1985)

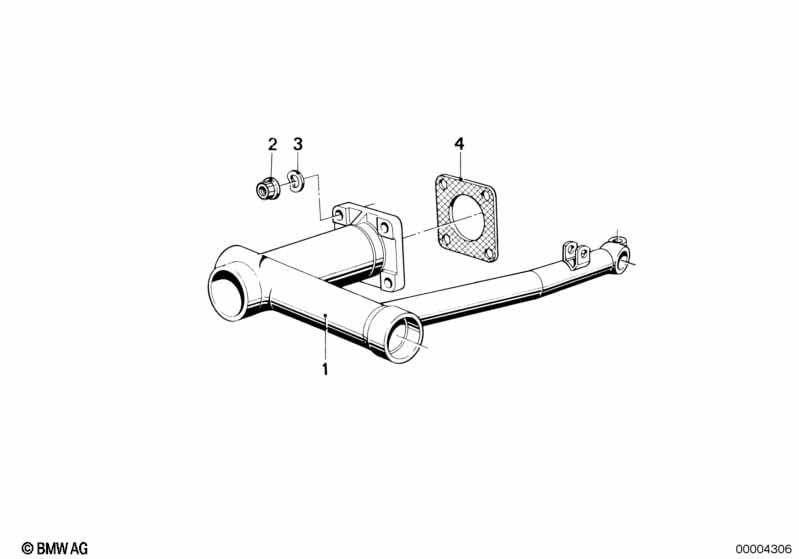

This Rear wheel swinging arm technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear wheel swinging arm, black | 1 | 09/1980 | 33172301233 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Nut | 4 | 33171237789 | $2.39 | Shop at ECS Tuning | |||||
| 03 | Wave washer | 4 | 33171242296 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket Asbestos Free | 1 | 33172311098 | $2.70 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Rear wheel swinging arm?
- This technical diagram illustrates the Rear wheel swinging arm within the Rear axle, rear-wheel drive, suspension group for the R45-R65LS..78-85 R65LS produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Rear wheel swinging arm, black (Part #33172301233).
- Which models use the hardware listed in this Rear wheel swinging arm?
- The hardware and components featured in the Rear wheel swinging arm are specific to the R45-R65LS..78-85 R65LS produced during 1985. These technical specifications ensure that parts like the Rear wheel swinging arm, black (33172301233) are correctly matched to the vehicle's structural and mechanical requirements.
