Differential-crown wheel inst.parts for BMW R50/5-R90S 69-76 R90S (1974)

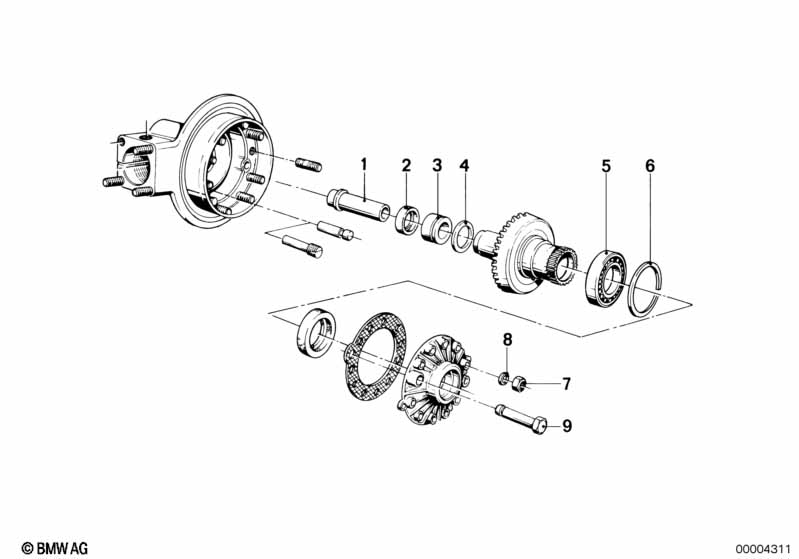

This Differential-crown wheel inst.parts technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bush | 1 | 33121230257 | $24.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket ring | 30X42X7 | 1 | 33122301019 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket ring | 30X42X7 | 1 | 33122301019 | ENDED | Shop at ECS Tuning | ||||
| 03 | Needle bearing | 32X47X24.5 | 1 | 33121242739 | Shop at ECS Tuning | |||||
| 04 | Compression ring | 1,8MM | 1 | 33121230527 | $16.41 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 2,0MM | 1 | 33121230528 | $16.41 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 2,2MM | 1 | 33121230529 | $16.41 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 2,3MM | 1 | 33121230530 | $16.41 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 2,4MM | 1 | 33121230531 | $16.41 | ENDED | Shop at ECS Tuning | |||
| 04 | Compression ring | 2,5MM | 1 | 33121230532 | $16.41 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 2,6MM | 1 | 33121230533 | $16.41 | ENDED | Shop at ECS Tuning | |||
| 04 | Compression ring | 1,9MM | 1 | 33121231238 | $16.41 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 2,1MM | 1 | 33121231239 | $16.41 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 1,7MM | 1 | 33121232769 | $16.41 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 1,5MM | 1 | 33121238931 | $16.41 | ENDED | Shop at ECS Tuning | |||
| 04 | Compression ring | 1,6MM | 1 | 33121238932 | $16.41 | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | 16013 | 1 | 07119981760 | $87.27 | Shop at ECS Tuning | ||||
| 06 | Shim | 90X99,8X0,180MM | 1 | 33121230535 | $19.16 | Shop at ECS Tuning | ||||
| 06 | Shim | 90X99,8X0,280MM | 1 | 33121230536 | $14.72 | ENDED | Shop at ECS Tuning | |||
| 06 | Shim | 90X99,8X0,380MM | 1 | 33121230537 | $19.16 | ENDED | Shop at ECS Tuning | |||
| 06 | Shim | 90X99,8X0,500MM | 1 | 33121230538 | $19.16 | Shop at ECS Tuning | ||||
| 06 | Shim | 90X99,8X0,630MM | 1 | 33121230539 | $19.16 | Shop at ECS Tuning | ||||
| 06 | Shim | 90X99,8X0,750MM | 1 | 33121230540 | $19.16 | ENDED | Shop at ECS Tuning | |||
| 06 | Shim | 90X99,8X0,880MM | 1 | 33121230541 | $19.16 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNS3 | X | 07/1980 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Hex nut | M8-8-ZNNIV SI | X | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Pin | 1 | 33111234559 | $25.33 | ENDED | Shop at ECS Tuning |
