Sport suspension for BMW 5 Series E12 528 (1976)

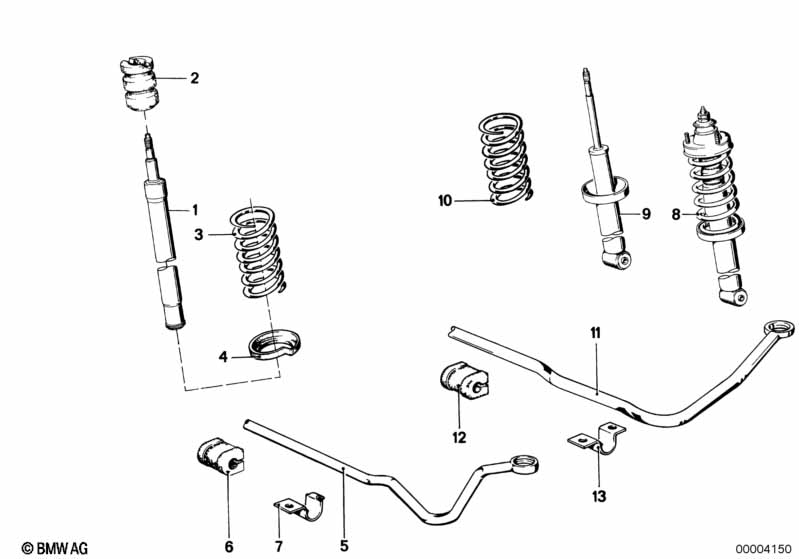

This Sport suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber-insert | BOGE | 2 | 08/1976 | 31321121482 | $205.73 | ENDED | Shop at ECS Tuning | ||
| 02 | Absorber | 2 | 08/1976 | 31331121835 | $16.39 | ENDED | Shop at ECS Tuning | |||
| 03 | Coil spring | 2 | 08/1976 | 31331121614 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring pad | 2 | 08/1976 | 31331121422 | $6.11 | Shop at ECS Tuning | ||||
| 05 | Stabilizer, front | D=24MM | 1 | 08/1976 | 31351113024 | $168.52 | ENDED | Shop at ECS Tuning | ||
| 06 | Stabilizer rubber mounting | D=24MM | 2 | 08/1976 | 31351118394 | $6.08 | Shop at ECS Tuning | |||
| 07 | Stabilizer support | 2 | 08/1976 | 31351118390 | $7.36 | Shop at ECS Tuning | ||||
| 08 | Spring strut, rear | 2 | 08/1976 | 33521121726 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spring strut, rear | 2 | 08/1976 | 33521121485 | $309.68 | ENDED | Shop at ECS Tuning | |||
| 10 | Coil spring | VIOLETT | 2 | 08/1976 | 33531121732 | ENDED | Shop at ECS Tuning | |||
| 12 | Stabilizer rubber mounting | D=18MM | 2 | 08/1976 | 31352654111 | $8.86 | Shop at ECS Tuning | |||
| 13 | Stabilizer support | 2 | 08/1976 | 31352654112 | $9.36 | Shop at ECS Tuning |
