Sport suspension for BMW 6 Series E24 633CSi

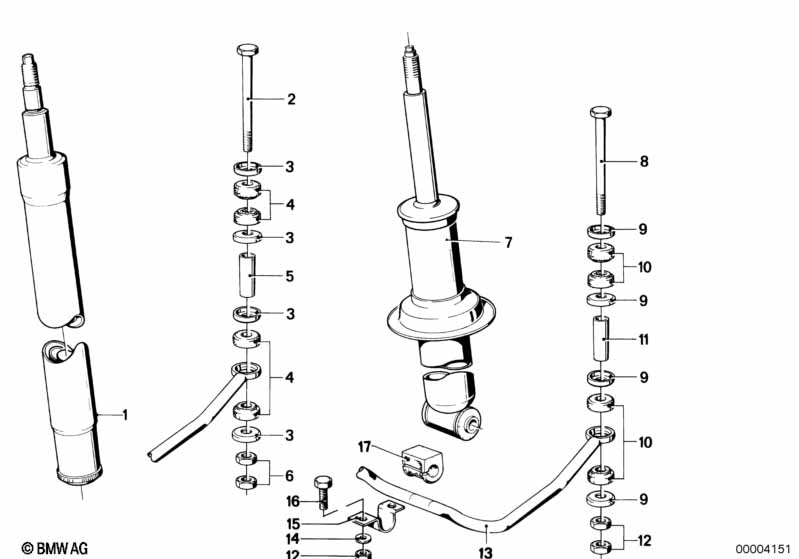

This Sport suspension technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber-insert | 2 | 08/1978 | 31321118528 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X160 | 2 | 08/1978 | 07119912595 | $3.47 | Shop at ECS Tuning | |||
| 03 | Plate | 8 | 08/1978 | 31351114570 | $3.59 | Shop at ECS Tuning | ||||
| 04 | Rubber Ring | 8 | 08/1978 | 31351125712 | $1.37 | Shop at ECS Tuning | ||||
| 05 | Spacer sleeve | 2 | 08/1978 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNS3 | 4 | 08/1978 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 4 | 08/1978 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 07 | Shock absorber, rear | 2 | 08/1978 | 33521118523 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X160 | 2 | 08/1978 | 07119912595 | $3.47 | Shop at ECS Tuning | |||
| 09 | Plate | 8 | 08/1978 | 31351114570 | $3.59 | Shop at ECS Tuning | ||||
| 10 | Rubber Ring | 8 | 08/1978 | 31351125712 | $1.37 | Shop at ECS Tuning | ||||
| 11 | Spacer sleeve | 2 | 08/1978 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex nut | M8-8-ZNS3 | 8 | 08/1978 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 12 | Hex nut | M8-8-ZNNIV SI | 8 | 08/1978 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 13 | Stabilizer, rear | D=18MM | 1 | 08/1978 | 33551123945 | $101.84 | ENDED | Shop at ECS Tuning | ||
| 14 | Washer | 8,4X16X1,6-ZNNV | 4 | 08/1978 | 07119907030 | Shop at ECS Tuning | ||||
| 15 | Stabilizer support | 2 | 08/1978 | 31352654112 | $9.36 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X16-10.9-PHR | 4 | 08/1978 | 07119913612 | $0.62 | Shop at ECS Tuning | |||
| 17 | Stabilizer rubber mounting | D=18MM | 2 | 08/1978 | 31352654111 | $8.86 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Sport suspension?
- This technical diagram illustrates the Sport suspension within the Rear Axle group for the 6 Series E24 633CSi. It provides a detailed exploded view of the components, identifying key parts such as the Shock absorber-insert (Part #31321118528).
- Which models use the hardware listed in this Sport suspension?
- The hardware and components featured in the Sport suspension are specific to the 6 Series E24 633CSi. These technical specifications ensure that parts like the Shock absorber-insert (31321118528) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sport suspension assembly?
- Each item in the Sport suspension corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Shock absorber-insert by locating its position on the schematic, which then links to the official BMW part number 31321118528 for the Rear Axle section.
