Sport suspension for BMW 7 Series E23 732i (1982)

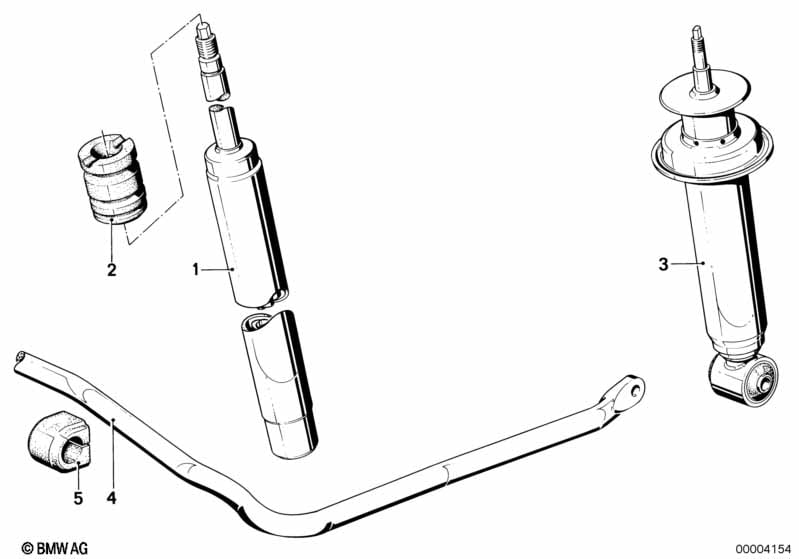

This Sport suspension technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber-insert | 2 | 09/1979 | 09/1982 | 31321124738 | $193.07 | ENDED | Shop at ECS Tuning | ||
| 02 | Absorber | 2 | 09/1979 | 09/1982 | 31331121835 | $16.39 | ENDED | Shop at ECS Tuning | ||
| 03 | Shock absorber, rear | 2 | 09/1981 | 09/1982 | 33521125980 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 03 | Shock absorber, rear left | 1 | 09/1981 | 09/1982 | 37121125985 | $403.23 | ENDED | Shop at ECS Tuning | ||
| 03 | Shock absorber, rear right | 1 | 09/1981 | 09/1982 | 37121125986 | $335.92 | ENDED | Shop at ECS Tuning | ||
| 04 | Stabilizer, front | D=25MM | 1 | 09/1979 | 09/1982 | 31351122287 | $157.36 | ENDED | Shop at ECS Tuning | |
| 05 | Stabilizer rubber mounting | D=24MM | 2 | 09/1979 | 09/1982 | 31351119468 | $5.79 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
