Sports suspension M technic for BMW 7 Series E23 735i (1986)

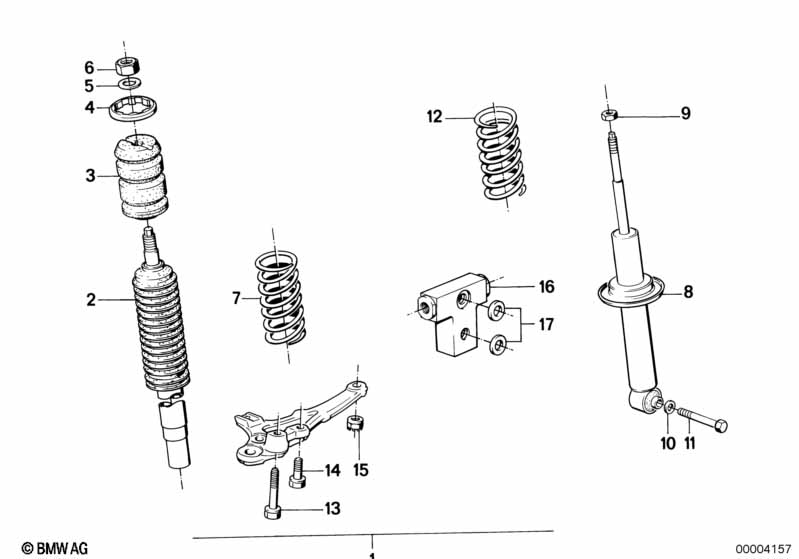

This Sports suspension M technic technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Shock absorber-insert | M TECHNIK | 2 | 31322225668 | $272.73 | ENDED | Shop at ECS Tuning | |||
| 03 | Absorber | 2 | 33521127122 | $19.70 | ENDED | Shop at ECS Tuning | ||||
| 04 | Threaded ring | D=51MM | 2 | 31311127285 | $3.02 | Shop at ECS Tuning | ||||
| 05 | Washer | 2 | 31331110301 | $0.91 | Shop at ECS Tuning | |||||
| 06 | Self-locking hex nut | M18X1,5 | 2 | 07129922475 | $1.46 | Shop at ECS Tuning | ||||
| 07 | Coil spring short | M TECHNIC | 2 | 09/1982 | 31332225634 | $131.20 | ENDED | Shop at ECS Tuning | ||
| 07 | Coil spring short | M TECHNIC | 2 | 02/1985 | 31332225634 | $131.20 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 07 | Coil spring short | M TECHNIC | 2 | 09/1982 | 31332225634 | $131.20 | ENDED | Shop at ECS Tuning | ||
| 07 | Coil spring short | M TECHNIC | 2 | 02/1985 | 31332225634 | $131.20 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 07 | Coil spring short | M TECHNIC | 2 | 09/1983 | 31332225637 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 07 | Coil spring short | M TECHNIC | 2 | 09/1982 | 31332225634 | $131.20 | ENDED | Shop at ECS Tuning | ||
| 08 | Shock absorber, rear | M TECHNIC | 2 | 33522225658 | ENDED | Shop at ECS Tuning | ||||
| 10 | Washer | 2 | 33521125260 | $1.65 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning | ||||
| 12 | Coil spring short | M TECHNIC | 2 | 33532225640 | $128.53 | ENDED | Shop at ECS Tuning | |||
| 13 | Hex bolt | 4 | 32211124045 | $5.13 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | 2 | 32211124046 | $0.98 | Shop at ECS Tuning | |||||
| 15 | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Sports suspension M technic?
- This technical diagram illustrates the Sports suspension M technic within the Rear Axle group for the 7 Series E23 735i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Shock absorber-insert (Part #31322225668).
- Which models use the hardware listed in this Sports suspension M technic?
- The hardware and components featured in the Sports suspension M technic are specific to the 7 Series E23 735i produced during 1986. These technical specifications ensure that parts like the Shock absorber-insert (31322225668) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sports suspension M technic assembly?
- Each item in the Sports suspension M technic corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Shock absorber-insert by locating its position on the schematic, which then links to the official BMW part number 31322225668 for the Rear Axle section.
