HD-suspension for BMW 3 Series E21 323i (1982)

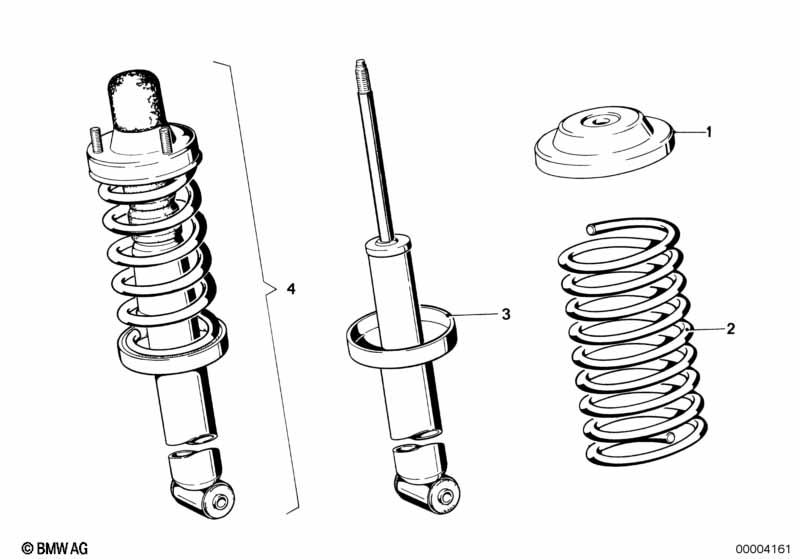

This HD-suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | with STABILIZER BAR FRONT STABILIZER BAR REAR |
|||||||||
| REAR SPRING STRUT | ||||||||||
| 02 | Coil spring | 2 | 33531117474 | $129.46 | ENDED | Shop at ECS Tuning | ||||
| FRONT SPRING STRUT | ||||||||||
| 02 | Coil spring | 2 | 31331116025 | $114.68 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SHOCK ABSORB.(TROPICAL) | ||||||||||
| 03 | Shock absorber, rear | 2 | 09/1981 | 33521126838 | ENDED | Shop at ECS Tuning | ||||
| REAR SPRING STRUT | ||||||||||
| 03 | Shock absorber, rear | BOGE | 2 | 33521119078 | $136.48 | ENDED | Shop at ECS Tuning | |||
| 04 | Spring strut, rear | 2 | 33521119077 | $193.07 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
