Levelling device/pump unit for BMW 6 Series E24 628CSi (1982)

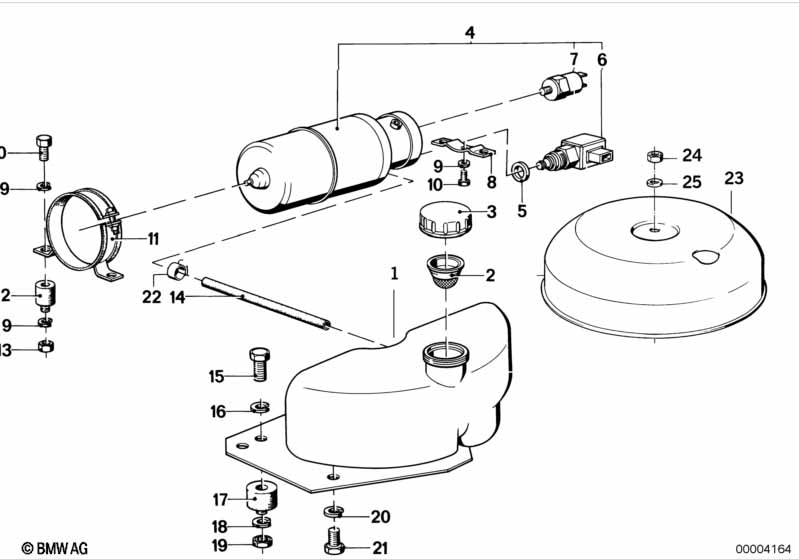

This Levelling device/pump unit technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 37121120933 | $96.65 | Shop at ECS Tuning | |||||
| 02 | Strainer | 1 | 37121120542 | $7.73 | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 37121119925 | $12.60 | Shop at ECS Tuning | |||||
| 04 | Pump unit | F+S | 1 | 37121128247 | $1538.63 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A20X24-CU | 1 | 07119963342 | $0.24 | Shop at ECS Tuning | ||||
| 06 | Valve | 1 | 61311364096 | $247.75 | ENDED | Shop at ECS Tuning | ||||
| 07 | Switch | 115BAR | 1 | 61311364116 | $94.53 | ENDED | Shop at ECS Tuning | |||
| 08 | Bow | 1 | 37121120938 | $5.69 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spring washer | B4 | 6 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M4X6 | 6 | 07119913071 | ENDED | Shop at ECS Tuning | ||||
| 11 | Muffler clamp | 1 | 37121120937 | $49.66 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rubber Mounting | 4 | 37121119959 | $10.27 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 14 | Hose | PVC SHORE80+/-5 | 1 | 37121131658 | $3.72 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X8 | 3 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 16 | Spring washer | B6 | 3 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Rubber Mounting | 3 | 37121120932 | $11.61 | ENDED | Shop at ECS Tuning | ||||
| 18 | Spring washer | B6 | 3 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 19 | Hex nut | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 21 | Hex bolt with washer | M8X12-Z3-1 | 2 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 22 | Hose clamp | 1 | 37121123144 | $3.65 | ENDED | Shop at ECS Tuning | ||||
| 23 | Cover | 1 | 37121121016 | $56.92 | ENDED | Shop at ECS Tuning | ||||
| 24 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 25 | Washer | 8,4X24X2-ZNS3 | 1 | 07119904164 | $0.40 | Shop at ECS Tuning |
