Levelling device/pressure accumulator for BMW 5 Series E28 528e (1987)

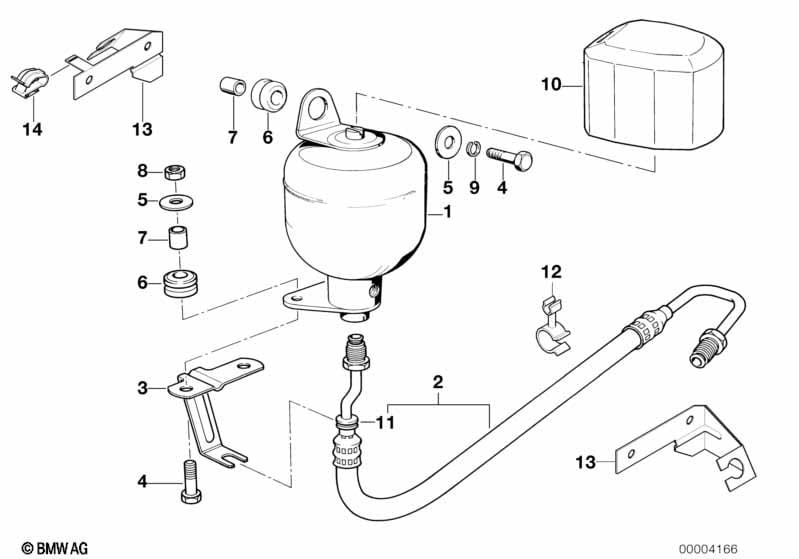

This Levelling device/pressure accumulator technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure accumulator | 2 | 37211124595 | $202.59 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pressure hose assy left | 1 | 37221120825 | $89.43 | Shop at ECS Tuning | |||||
| 02 | Pressure hose assy right | 1 | 37221120826 | $89.43 | Shop at ECS Tuning | |||||
| 03 | Holder | 2 | 37211121254 | $2.62 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X25 | 6 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Washer | 6,4X25X1,5 | 6 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Rubber grommet | 6 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 07 | Spacer bush | 12MM | 6 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
