Headlight vertical aim control sensor for BMW 7 Series E38 740i (1998)

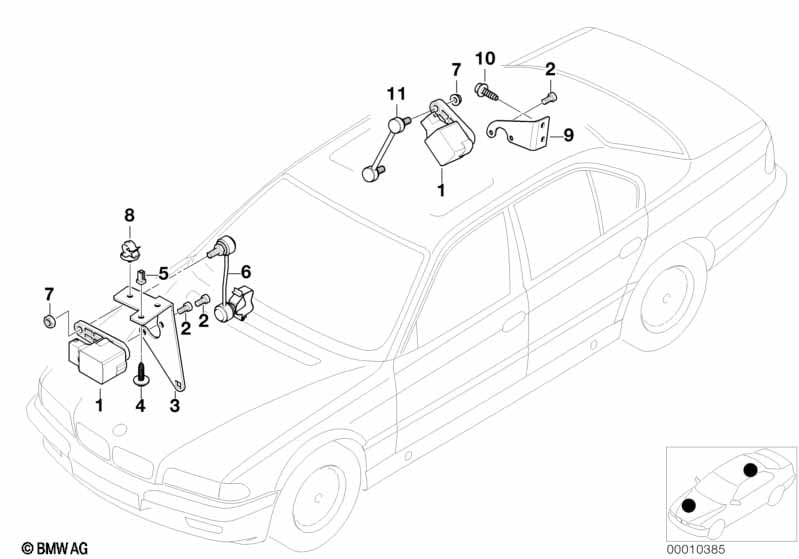

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light |
S522A=Yes |
||||||||
| 01 | Level sensor | 2 | 03/1997 | 37146784696 | $85.28 | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | M5X10-8.8-ZNNIV | 4 | 03/1997 | 07119904303 | $0.25 | Shop at ECS Tuning | |||
| 03 | Sensor bracket f headlight aim control | 1 | 03/1997 | 37141182644 | $3.62 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-ZNS3 | 3 | 03/1997 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 05 | Expanding nut | ST 4.8 WEISS | 3 | 03/1997 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 06 | Front angle joint | 1 | 03/1997 | 63121183088 | $29.53 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M6 ZNNIV SI | 4 | 03/1997 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 08 | Clip retainer | 4 | 03/1997 | 61138368029 | $0.43 | Shop at ECS Tuning | ||||
| 09 | Right ride height sensor bracket | 1 | 03/1997 | 37141095034 | $3.77 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 03/1997 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 11 | Rear angle joint | 1 | 03/1997 | 63121183089 | $29.53 | Shop at ECS Tuning | ||||
