Side shaft/wheel bearings for BMW 5 Series E39 528i (1999)

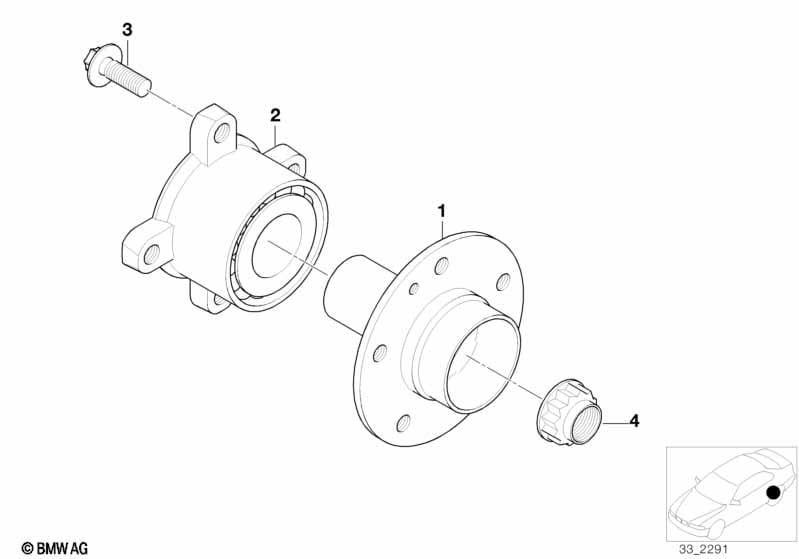

This Side shaft/wheel bearings technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive flange hub | 2 | 33411093371 | $110.11 | Shop at ECS Tuning | |||||
| 02 | Angular-contact ball bearing unit | 45X80X37 | 2 | 33411095652 | $94.13 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Collar screw | M10X1X31-10.9 | 8 | 33321093661 | $0.88 | Shop at ECS Tuning | ||||
| -- | Collar nut | M27X1,5 | 2 | 33411133785 | $10.86 | Shop at ECS Tuning | ||||
| 03 | Collar screw | M10X1X31-10.9 | 8 | 33321093661 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Collar nut | M27X1,5 | 2 | 33411133785 | $10.86 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Side shaft/wheel bearings?
- This technical diagram illustrates the Side shaft/wheel bearings within the Rear Axle group for the 5 Series E39 528i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Drive flange hub (Part #33411093371).
- Which models use the hardware listed in this Side shaft/wheel bearings?
- The hardware and components featured in the Side shaft/wheel bearings are specific to the 5 Series E39 528i produced during 1999. These technical specifications ensure that parts like the Drive flange hub (33411093371) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side shaft/wheel bearings assembly?
- Each item in the Side shaft/wheel bearings corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Drive flange hub by locating its position on the schematic, which then links to the official BMW part number 33411093371 for the Rear Axle section.
