Rear spring strut EDC/ctrl unit/sensor for BMW 8 Series E31 840Ci (1996)

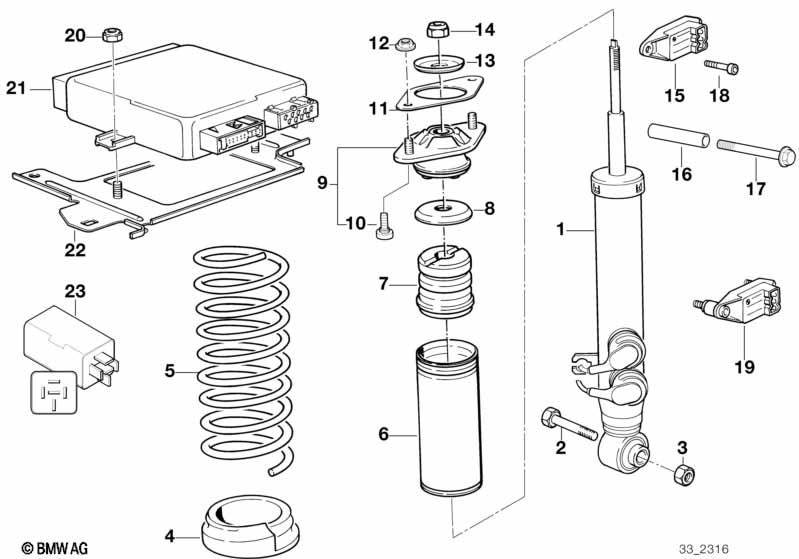

This Rear spring strut EDC/ctrl unit/sensor technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber, rear left | 1 | 04/1992 | 33521090397 | $1167.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Shock absorber, rear right | 1 | 04/1992 | 33521090398 | $1167.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M12X1,5X85 | 2 | 07119914681 | $2.09 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M12X1,5-10-PHR | 2 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Spring pad | 4 | 33531136696 | $8.88 | Shop at ECS Tuning | |||||
| 06 | Protection tube | 2 | 33521134044 | $5.58 | Shop at ECS Tuning | |||||
| 07 | Auxiliary shock absorber, rear | 2 | 33531137121 | $22.90 | Shop at ECS Tuning | |||||
| 08 | Support | 68MM | 2 | 33521129559 | $1.82 | Shop at ECS Tuning | ||||
| 09 | Guide support | 2 | 33521091605 | $32.70 | Shop at ECS Tuning | |||||
| 10 | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 12 | Self-locking collar nut | M8-8-ZNS3 | 6 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 13 | Support | 55MM | 2 | 33521135195 | $1.67 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 15 | Accelerating sensor | 1 | 08/1995 | 37146781405 | $102.03 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 2 | 08/1995 | 37141094483 | $1.65 | ENDED | Shop at ECS Tuning | |||
| -- | Hex bolt with washer | M6X60-Z1 | 1 | 08/1995 | 07119902062 | $0.89 | Shop at ECS Tuning | |||
| 16 | Spacer bush | 2 | 08/1995 | 37141094483 | $1.65 | ENDED | Shop at ECS Tuning | |||
| 17 | Hex bolt with washer | M6X60-Z1 | 2 | 08/1995 | 07119902062 | $0.89 | Shop at ECS Tuning | |||
| 19 | Sensor EDC | 1 | 09/1991 | 37141181909 | $212.77 | Shop at ECS Tuning | ||||
| 20 | Hex nut | M6-04-2-ZN | 2 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 21 | Control unit EDC uncoded | 1 | 09/1991 | 37151092572 | $516.69 | ENDED | Shop at ECS Tuning | |||
| 22 | Bracket, control unit | 1 | 37151139202 | $28.74 | ENDED | Shop at ECS Tuning | ||||
| 23 | Relay | 1 | 37151180408 | $102.08 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 840Ci Rear spring strut EDC/ctrl unit/sensor?
- This technical diagram illustrates the Rear spring strut EDC/ctrl unit/sensor within the Rear Axle group for the 8 Series E31 840Ci produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Shock absorber, rear left (Part #33521090397).
- Which models use the hardware listed in this Rear spring strut EDC/ctrl unit/sensor?
- The hardware and components featured in the Rear spring strut EDC/ctrl unit/sensor are specific to the 8 Series E31 840Ci produced during 1996. These technical specifications ensure that parts like the Shock absorber, rear left (33521090397) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear spring strut EDC/ctrl unit/sensor assembly?
- Each item in the Rear spring strut EDC/ctrl unit/sensor corresponds to the numbered list below the illustration. For the 8 Series E31 840Ci, you can identify the Shock absorber, rear left by locating its position on the schematic, which then links to the official BMW part number 33521090397 for the Rear Axle section.
