Limited slip diff.unit-single parts for BMW 6 Series E24 635CSi (1988)

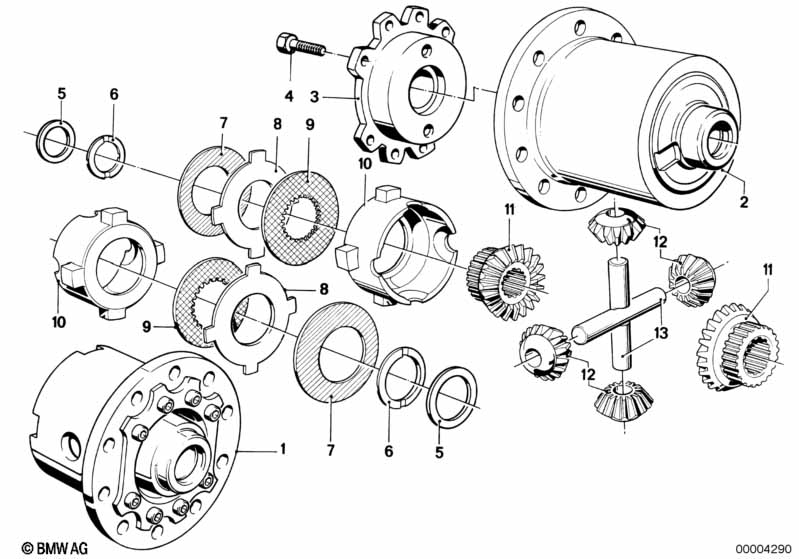

This Limited slip diff.unit-single parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ZF.-Nr.4061 006 503 | |||||||||
| 01 | Limited slip diff.unit | 25% | 1 | 33141209652 | ENDED | Shop at ECS Tuning | ||||
| 01 | AT-limited slip diff.unit | 25% | 1 | 33141209653 | $1021.14 | ENDED | Shop at ECS Tuning | |||
| 02 | Differential housing | 1 | 33141210615 | ENDED | Shop at ECS Tuning | |||||
| 03 | Housing cover | 1 | 33141210616 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M8X16 UFK | 8 | 33147740005 | $2.24 | Shop at ECS Tuning | ||||
| 05 | Stop disk | 2,20MM | 2 | 33141201931 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 2,15MM | 2 | 33141201932 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 2,10MM | 2 | 33141201933 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 2,05MM | 2 | 33141201934 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 2,00MM | 2 | 33141201935 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 1,95MM | 2 | 33141201936 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 1,90MM | 2 | 33141201937 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 1,85MM | 2 | 33141201938 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 1,80MM | 2 | 33141201939 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 2,25MM | 2 | 33141203791 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 2,30MM | 2 | 33141203792 | ENDED | Shop at ECS Tuning | ||||
| 06 | Stop disk | 2 | 33141206919 | ENDED | Shop at ECS Tuning | |||||
| 07 | Diaphragm spring | 2 | 33141204367 | ENDED | Shop at ECS Tuning | |||||
| 08 | Outer disc | 1,90MM | 2 | 33141203795 | ENDED | Shop at ECS Tuning | ||||
| 08 | Outer disc | 2,00MM | 2 | 33141203796 | ENDED | Shop at ECS Tuning | ||||
| 08 | Outer disc | 2,10MM | 2 | 33141203797 | ENDED | Shop at ECS Tuning | ||||
| 09 | Inner disc | 2 | 33141210626 | $53.61 | Shop at ECS Tuning | |||||
| 10 | Compression ring | 2 | 33141206909 | $179.68 | ENDED | Shop at ECS Tuning | ||||
| 11 | Side gear | 2 | 33141210623 | ENDED | Shop at ECS Tuning | |||||
| 12 | Bevel gear | 4 | 33141210624 | ENDED | Shop at ECS Tuning | |||||
| 13 | Bevel mate shaft | 2 | 33141203801 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Limited slip diff.unit-single parts?
- This technical diagram illustrates the Limited slip diff.unit-single parts within the Rear Axle group for the 6 Series E24 635CSi produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Limited slip diff.unit (Part #33141209652).
- Which models use the hardware listed in this Limited slip diff.unit-single parts?
- The hardware and components featured in the Limited slip diff.unit-single parts are specific to the 6 Series E24 635CSi produced during 1988. These technical specifications ensure that parts like the Limited slip diff.unit (33141209652) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Limited slip diff.unit-single parts assembly?
- Each item in the Limited slip diff.unit-single parts corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Limited slip diff.unit by locating its position on the schematic, which then links to the official BMW part number 33141209652 for the Rear Axle section.
