Rear axle carrier for BMW 3 Series E46 330d (2001)

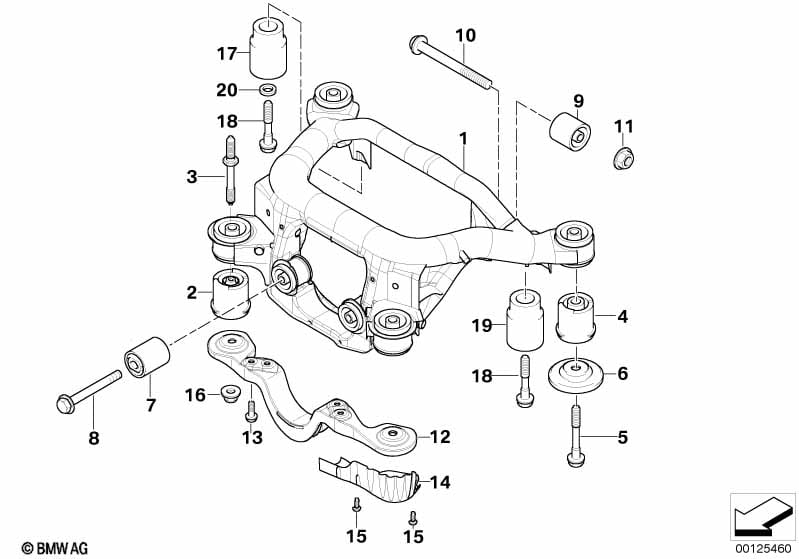

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33316770785 | Shop at ECS Tuning | ||||||
| 02 | RUBBER MOUNTING front left | 1 | 33316770783 | $44.38 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 02 | RUBBER MOUNTING front right | 1 | 33316770784 | $44.38 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Threaded bolt | M12X1,5 ZNS3 | 2 | 33326760360 | $3.59 | Shop at ECS Tuning | ||||
| 04 | RUBBER MOUNTING rear | 2 | 33316770781 | $44.38 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 05 | Reduced-shaft bolt | M12X1,5X116-8.8 | 2 | 33326760361 | $2.27 | Shop at ECS Tuning | ||||
| 06 | Stopper, rear | 2 | 33306779486 | $13.87 | Shop at ECS Tuning | |||||
| 07 | RUBBER MOUNTING front | 2 | 33176770788 | $15.18 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M12X1,5X80 ZNS3 | 2 | 33176760337 | $1.81 | Shop at ECS Tuning | ||||
| 09 | RUBBER MOUNTING rear | 1 | 33176751808 | $54.46 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M14X1,5X133ZNS3 | 1 | 33176760336 | $8.88 | Shop at ECS Tuning | ||||
| 11 | Self-locking collar nut | M14X1,5-10 ZNS3 | 1 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 12 | Push rod | 1 | 33321094421 | $50.88 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M8X20,5-8.8ZNS3 | 4 | 33326760345 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| 17 | Vibration absorber | BLAU | 1 | 33311092256 | $44.79 | Shop at ECS Tuning | ||||
| 18 | Hexagon collar screw | M12X1,5X85-8.8 | 2 | 33006766024 | ENDED | Shop at ECS Tuning | ||||
| 18 | Collar screw | M12X1,5X70-10.9 | 2 | 33326760389 | $1.44 | Shop at ECS Tuning | ||||
| 19 | Vibration absorber | 1 | 33316756947 | Shop at ECS Tuning | ||||||
| 19 | Vibration absorber | 1 | 33316754031 | $74.49 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Rear axle carrier?
- This technical diagram illustrates the Rear axle carrier within the Rear Axle group for the 3 Series E46 330d produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Rear axle carrier (Part #33316770785).
- Which models use the hardware listed in this Rear axle carrier?
- The hardware and components featured in the Rear axle carrier are specific to the 3 Series E46 330d produced during 2001. These technical specifications ensure that parts like the Rear axle carrier (33316770785) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear axle carrier assembly?
- Each item in the Rear axle carrier corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Rear axle carrier by locating its position on the schematic, which then links to the official BMW part number 33316770785 for the Rear Axle section.
