Stabilizer, rear for BMW 3 Series E46 320d (2005)
This Stabilizer, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear | D=18MM | 1 | 09/2001 | 33551095758 | $148.28 | Shop at ECS Tuning | |||
| For vehicles with Sports suspension settings or M Sports package II |
S226A=Yes S338A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=19MM | 1 | 33551094545 | $148.28 | +core | Shop at ECS Tuning | |||

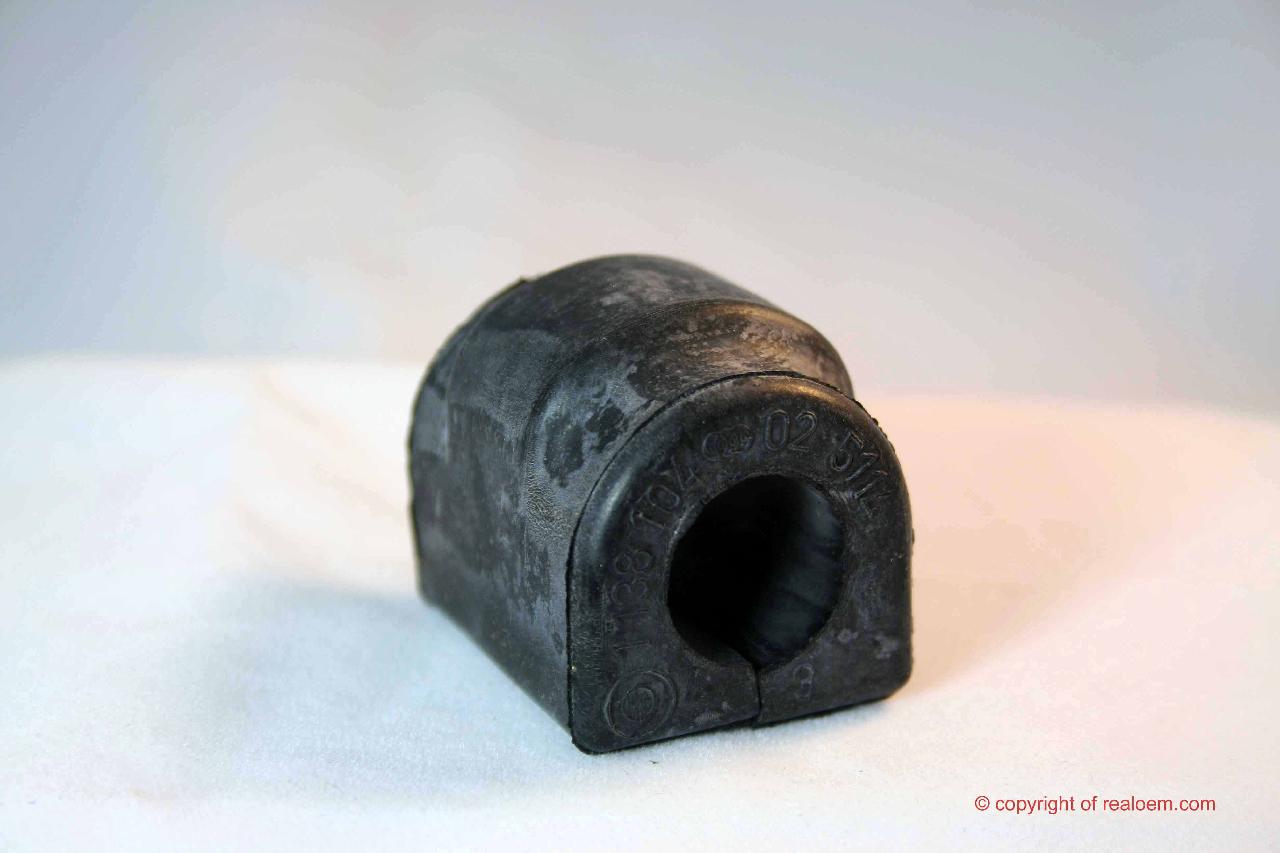

| 02 | Stabilizer rubber mounting | D=18MM | 2 | 09/2001 | 33551138104 | $5.93 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 09/2001 | 83192405829 | Shop at ECS Tuning | ||||
| For vehicles with Sports suspension settings or M Sports package II |
S226A=Yes S338A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=19MM | 2 | 33551094551 | $5.93 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Stabilizer support | 2 | 33506779734 | $3.04 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M8-8-ZNS3 | 4 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Stabilizer link | 2 | 33551094619 | $21.98 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M8X43-8.8-ZNS3 | 2 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Swing support bracket | 2 | 33556782120 | $2.63 | Shop at ECS Tuning | |||||
| 08 | Hexagon collar screw | M8X22-8.8 ZNS3 | 4 | 33326760669 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X43-8.8-ZNS3 | 2 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
