Rear-axle-drive parts for BMW 1500-2000CS 1800 (1967)

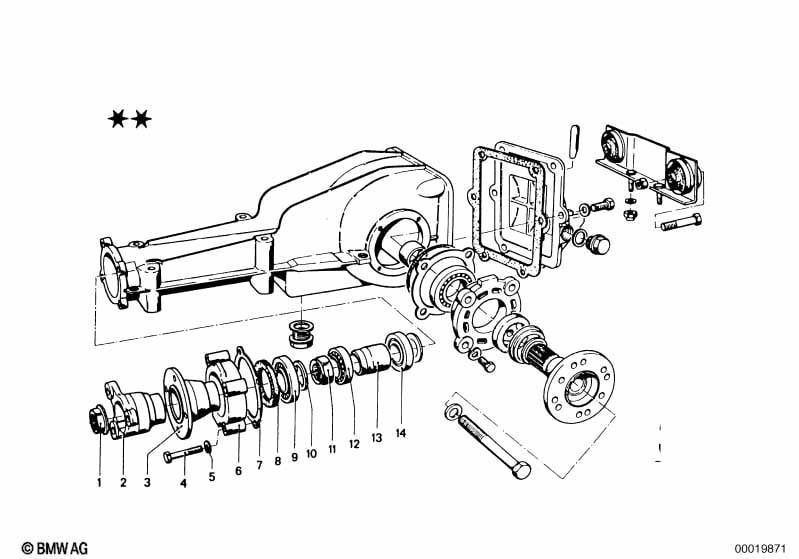

This Rear-axle-drive parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1967.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Collar nut | 1 | 33113604190 | ENDED | Shop at ECS Tuning | |||||
| 01 | Collar nut | M20X1,5 | 1 | 33121200258 | $8.56 | Shop at ECS Tuning | ||||
| 02 | Flange | 3 ARM | 1 | 02/1962 | 02/1970 | 33113604160 | ENDED | Shop at ECS Tuning | ||
| 04 | Hex bolt | M8X25-8.8-ZNNIV | 4 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 33113604109 | ENDED | Shop at ECS Tuning | |||||
| 07 | Gasket | 1 | 33113604115 | ENDED | Shop at ECS Tuning | |||||
| 08 | Gasket ring | 36X52X9 | 1 | 33113604164 | $17.03 | ENDED | Shop at ECS Tuning | |||
| 09 | Grooved ball bearing | 1 | 07119981226 | $17.75 | ENDED | Shop at ECS Tuning | ||||
| 10 | Ring | 1 | 33123604130 | ENDED | Shop at ECS Tuning | |||||
| 12 | Tapered roller bearing | 1 | 33121204303 | Shop at ECS Tuning | ||||||
| 13 | Pipe | 1 | 33123604125 | Shop at ECS Tuning | ||||||
| 14 | Tapered roller bearing | 1 | 33121204306 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
