Differential-crown wheel inst.parts for BMW 1502-2002tii 1602 (1971)

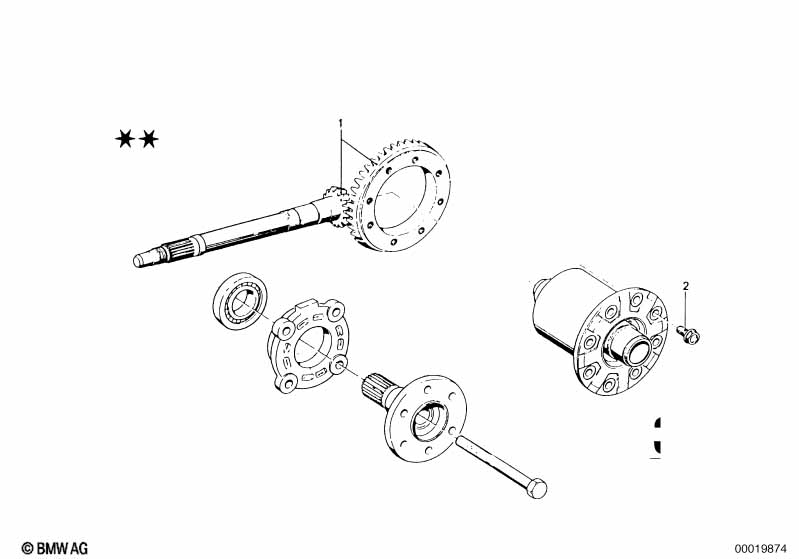

This Differential-crown wheel inst.parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crowngear set | I=41:10=4,10 HD | X | 33120413446 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=35:8=4,375 | X | 33123610005 | $901.17 | ENDED | Shop at ECS Tuning | |||
| 01 | Crowngear set | I=38:9=4,22 | X | 33123610009 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=37:9=4,111 | X | 33123610010 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=38:8=4,75 | X | 33123610013 | $948.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Crowngear set | I=35:8=4,375 HD | X | 33123610014 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=41:7=5,86 | X | 33123610015 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=37:7=5,29 | X | 33123610016 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=39:10=3,90 HD | X | 33123710000 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lock bolt | M10X19 | 8 | 33131212693 | $1.59 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X22 | 8 | 33133604188 | $6.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Securing bolt | M10X22 12.9 | 8 | 33331119171 | $1.23 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
