Differential-crown wheel inst.parts for BMW 1502-2002tii 2002ti (1972)

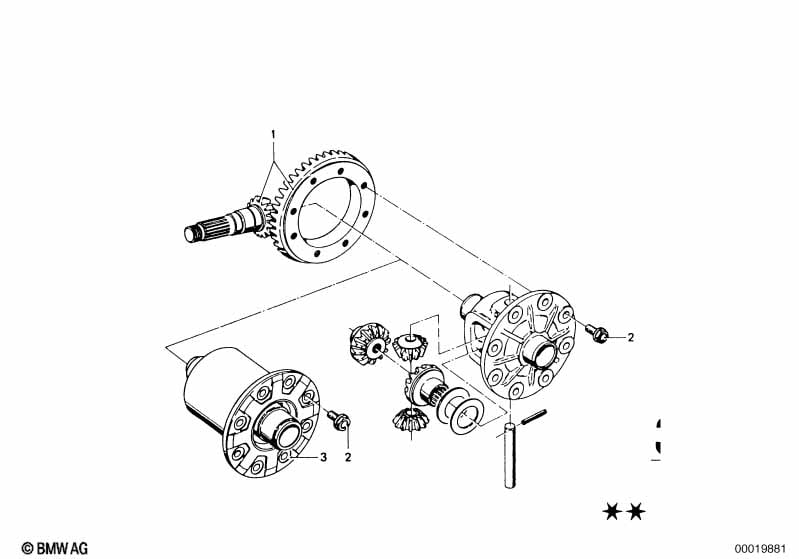

This Differential-crown wheel inst.parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crowngear set | I=37:7=5,22 | X | 33121201784 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=9:40=4,44 | X | 33121201790 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=38:11=3,45 | X | 33121207346 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=37:11=3,36 | X | 33121209083 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=38:9=4,22 | X | 33121209084 | $705.87 | ENDED | Shop at ECS Tuning | |||
| 01 | Crowngear set | I=35:8=4,37 | X | 33121209085 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=38:8=4,75 | X | 33121209086 | Shop at ECS Tuning | |||||
| 01 | Crowngear set | I=35:7=5,00 | X | 33121209087 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=41:7=5,85 | X | 33121209088 | +core | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=43:11=3,91 | X | 33121210742 | $804.08 | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=40:11=3,64 | 1 | 01/1968 | 07/1976 | 33121211831 | $804.08 | Shop at ECS Tuning | ||
| 02 | Lock bolt | M10X19 | 8 | 33131212693 | $1.59 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X22 | 8 | 33133604188 | $6.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Securing bolt | M10X22 12.9 | 8 | 33331119171 | $1.23 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
