Differential-limited slip diff.unit for BMW 1502-2002tii 2002 (1971)

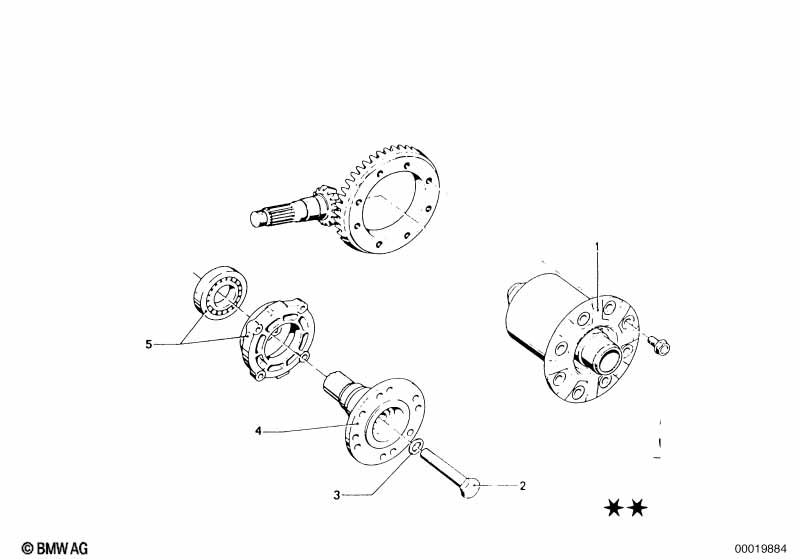

This Differential-limited slip diff.unit technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-limited slip diff.unit | 40% | 1 | 33141202295 | ENDED | Shop at ECS Tuning | ||||
| 01 | AT-limited slip diff.unit | 75% | 1 | 33141203567 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M12X1,5X95 | 2 | 07119914669 | $5.38 | ENDED | Shop at ECS Tuning | |||
| 03 | Washer | 2 | 11110502202 | ENDED | Shop at ECS Tuning | |||||
| 04 | Drive flange output | MIT SPERRE | 2 | 03/1966 | 08/1973 | 33211200686 | $183.02 | Shop at ECS Tuning | ||
| 05 | Bearing cover | 2 | 33111200682 | $158.49 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
